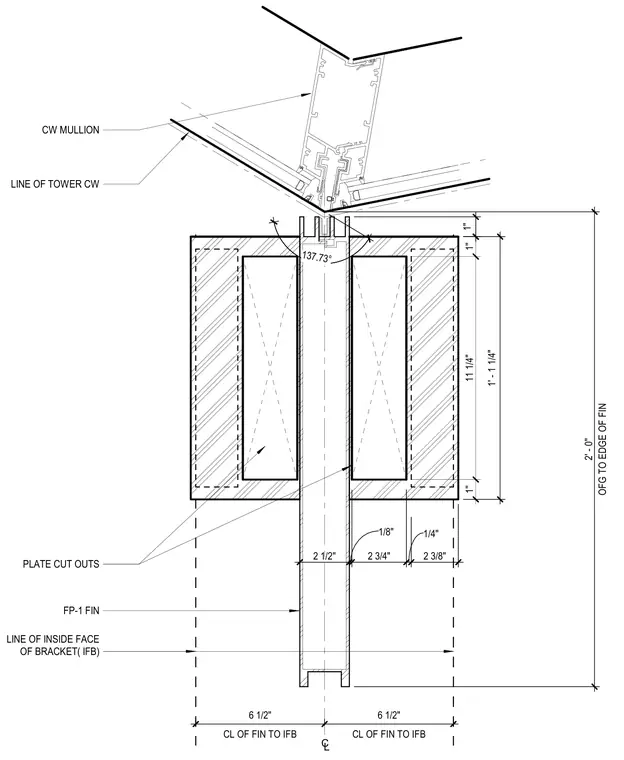

A curtain wall mullion connects to a structural fin designated as FP-1 at an angle of 137.73 degrees. The assembly incorporates plate cutouts and bracket lines with specific dimensional offsets, including a 2-foot-zero-inch clearance from the grid line to the edge of the fin. The layout features precise 6-and-a-half-inch centerline dimensions from the fin to the inside face of the bracket and an 11-and-a-quarter-inch dimension across the plate cutouts.
C L O F F I N T O I F B 6 1 / 2 " C L O F F I N T O I F B 6 1 / 2 " 2 1 / 2 " 1 / 8 " 2 3 / 4 " 1 / 4 " 2 3 / 8 " LINE OF TOWER CW FP-1 FIN PLATE CUT OUTS LINE OF INSIDE FACE OF BRACKET( IFB) 1 " 1 1 1 / 4 " 1 " CW MULLION CL 1 3 7 . 7 3 ° O F G T O E D G E O F F I N 2 ' - 0 " 1 ' - 1 1 / 4 " 1 "
