An accessible parking sign is mounted on a two-inch diameter standard weight galvanized steel pipe post using four number ten by three-quarter inch self-tapping vandal-proof screws. The sign panel consists of a zero-point-zero-eight-inch thick aluminum plate with a one-inch typical radius, finished with blue and white reflectorized paint per SAE AMS-STD-595 and CBC Section 11B-703.7.2.1. The post extends down to a one-foot diameter concrete footing with a sloped top to drain, positioned at finished grade or paving.

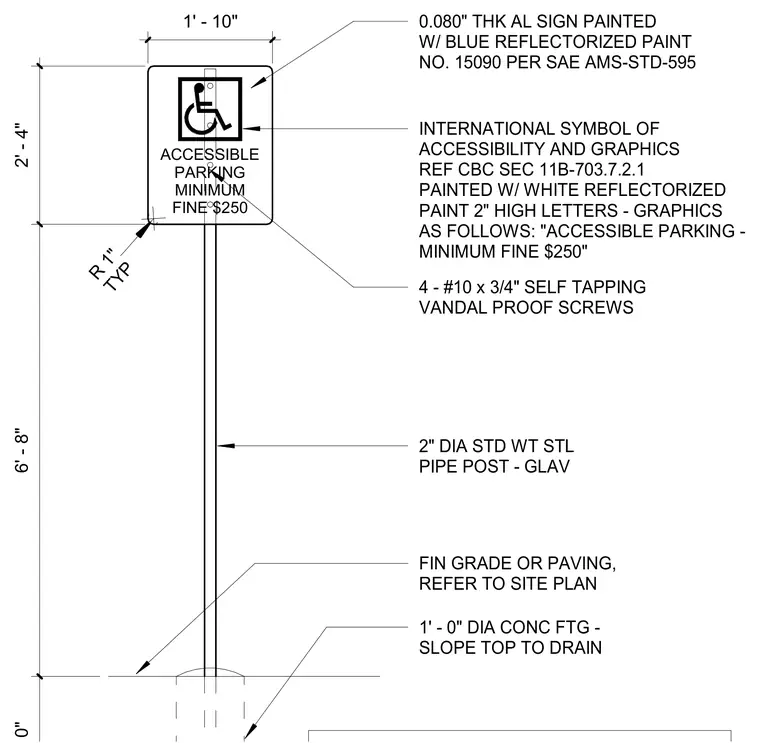

6' - 8" 2' - 4" 1' - 10" TYP R 1" ACCESSIBLE PARKING MINIMUM FINE $250 0.080" THK AL SIGN PAINTED W/ BLUE REFLECTORIZED PAINT NO. 15090 PER SAE AMS-STD-595 INTERNATIONAL SYMBOL OF ACCESSIBILITY AND GRAPHICS REF CBC SEC 11B-703.7.2.1 PAINTED W/ WHITE REFLECTORIZED PAINT 2" HIGH LETTERS - GRAPHICS AS FOLLOWS: "ACCESSIBLE PARKING - MINIMUM FINE $250" 4 - #10 x 3/4" SELF TAPPING VANDAL PROOF SCREWS 2" DIA STD WT STL PIPE POST - GLAV FIN GRADE OR PAVING, REFER TO SITE PLAN 1' - 0" DIA CONC FTG - SLOPE TOP TO DRAIN
