A five-inch diameter extra-strong galvanized steel pipe stands plumb and is filled with concrete, capped at the top with a one-eighth-inch galvanized steel closure plate welded and ground smooth. The pipe base is welded with a five-eighth-inch fillet weld to a one-inch by twelve-inch by twelve-inch ASTM A572 Grade 50 galvanized embed plate. The assembly anchors into the top of a beam or grade beam using four seven-eighth-inch diameter welded headed studs with a ten-inch embedment, maintaining a minimum edge distance of twenty-four inches for all anchors.

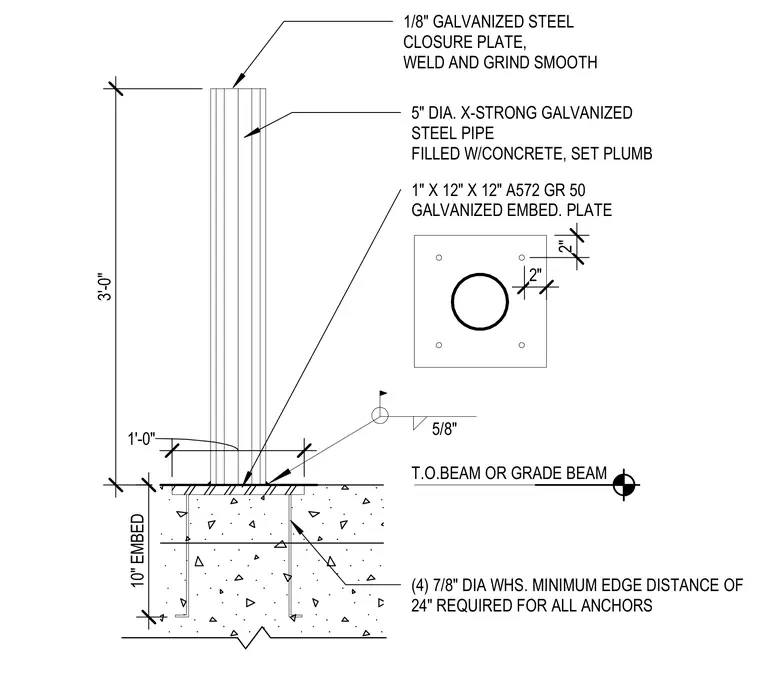

5" DIA. X-STRONG GALVANIZED STEEL PIPE FILLED W/CONCRETE, SET PLUMB 1/8" GALVANIZED STEEL CLOSURE PLATE, WELD AND GRIND SMOOTH 1" X 12" X 12" A572 GR 50 GALVANIZED EMBED. PLATE (4) 7/8" DIA WHS. MINIMUM EDGE DISTANCE OF 24" REQUIRED FOR ALL ANCHORS 1'-0" 10" EMBED T.O.BEAM OR GRADE BEAM 2" 2" 5/8" 3'-0"
