Architectural · A-3SN3G

Glulam Column Cladding and Mullion Transition Detail

Materials

Elements

Columns Facades / Cladding Waterproofing / Flashing

About this detail

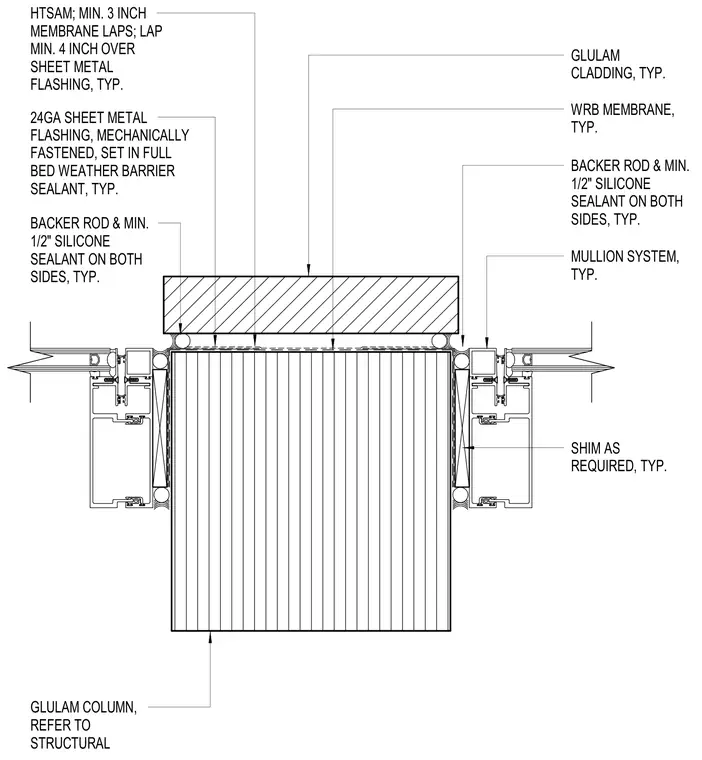

A weather-resistive barrier membrane laps over twenty-four gauge mechanically fastened sheet metal flashing, which is set in a full bed of weather barrier sealant at the interface between a glulam column with structural cladding and an adjacent mullion system. Backer rods and minimum one-half inch silicone sealant are applied on both sides of the joint. Shims are placed as required between the framing components.
