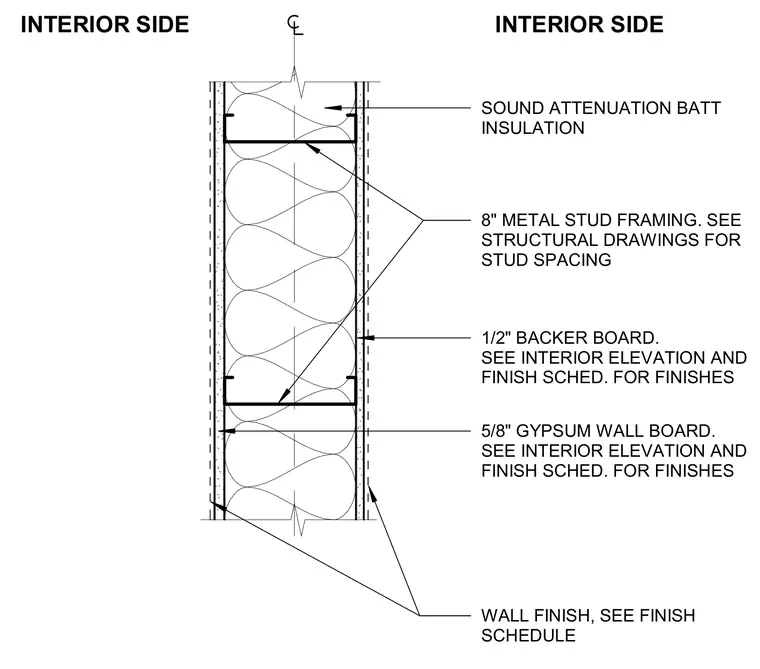

Eight-inch cold-formed metal stud framing provides the structural core for the interior partition wall. Cavities are filled with sound attenuation batt insulation. One side receives a half-inch backer board layer beneath the finish surface. Both faces are finished with five-eighths-inch gypsum wall board, with final wall finishes specified in the finish schedule.
INTERIOR SIDE 8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION INTERIOR SIDE 1/2" BACKER BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES WALL FINISH, SEE FINISH SCHEDULE
