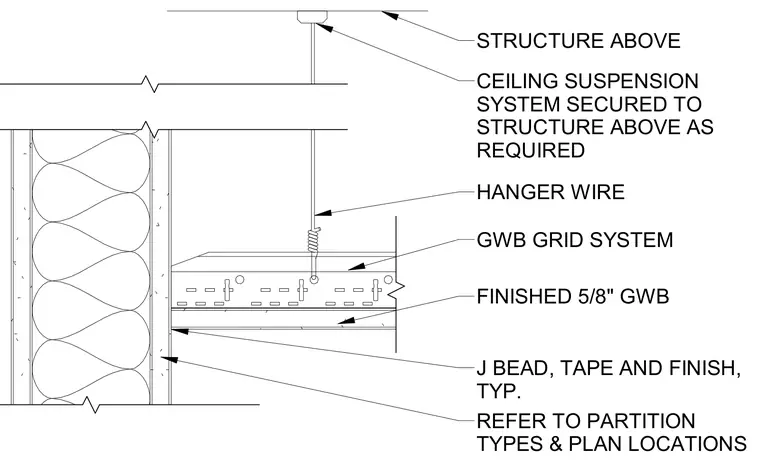

A suspended gypsum board ceiling connects to the structure above using hanger wires tied to a ceiling suspension grid system. Finished five-eighths inch gypsum wallboard is secured to the grid system and trimmed at the wall junction with a J-bead, tape, and finish. The adjacent partition construction refers to architectural partition types and plan locations.
STRUCTURE ABOVE CEILING SUSPENSION SYSTEM SECURED TO STRUCTURE ABOVE AS REQUIRED HANGER WIRE GWB GRID SYSTEM FINISHED 5/8" GWB J BEAD, TAPE AND FINISH, TYP. REFER TO PARTITION TYPES & PLAN LOCATIONS
