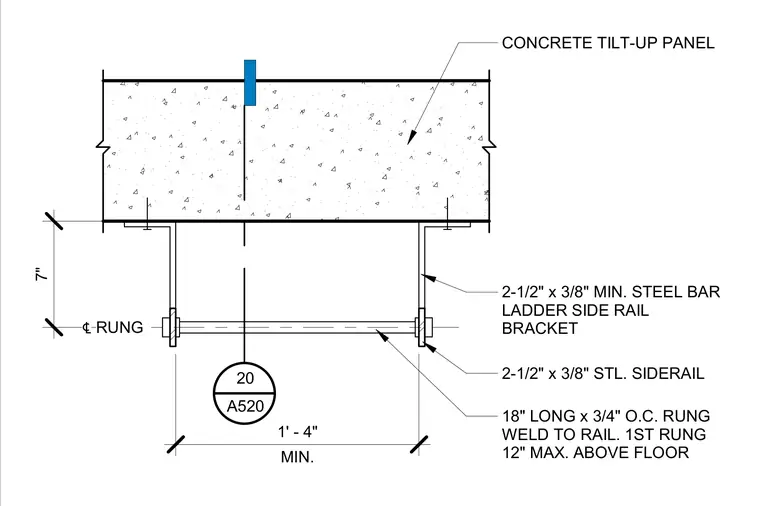

Steel ladder side rail brackets are anchored directly to the concrete tilt-up panel, supporting two 2-1/2 inch by 3/8 inch steel siderails spaced 1 foot 4 inches minimum on center. Rungs span between the siderails at 3/4 inch on center and are welded directly to the rails, with the first rung positioned 12 inches maximum above the floor. Brackets project 7 inches from the concrete surface.
2-1/2" x 3/8" STL. SIDERAIL 18" LONG x 3/4" O.C. RUNG WELD TO RAIL. 1ST RUNG 12" MAX. ABOVE FLOOR CONCRETE TILT-UP PANEL 2-1/2" x 3/8" MIN. STEEL BAR LADDER SIDE RAIL BRACKET MIN. 1' - 4" 7" ℄ RUNG 20 A520
