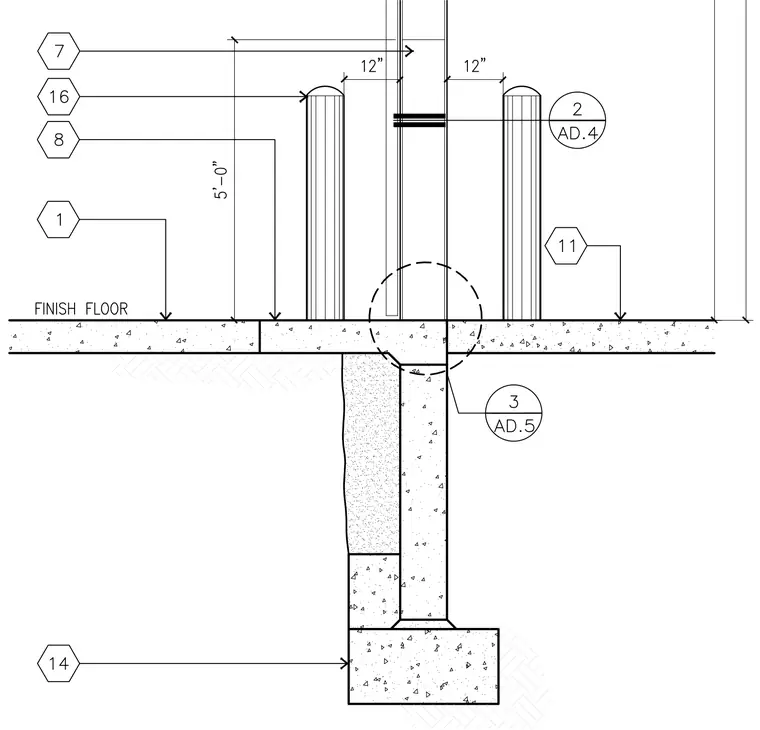

Two bollards are positioned on either side of a vertical assembly, each spaced 12 inches from the assembly centerline. The bollards extend 5 feet above the finish floor level. The assembly is anchored to a concrete slab, which is supported by a continuous concrete footing below grade. The detail references other drawings for specific connection and assembly components, including callouts for the slab and footing conditions.
