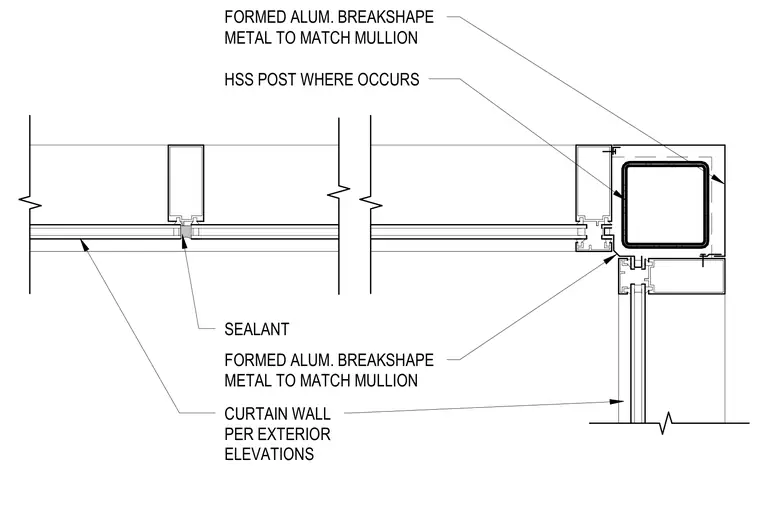

This plan detail shows a curtain wall corner junction framing around a hollow structural section post. Formed aluminum breakshapes match the mullions and wrap the structural steel tube. Perimeter sealant joints seal the glazing system per the exterior elevations.
SEALANT CURTAIN WALL PER EXTERIOR ELEVATIONS FORMED ALUM. BREAKSHAPE METAL TO MATCH MULLION HSS POST WHERE OCCURS FORMED ALUM. BREAKSHAPE METAL TO MATCH MULLION
