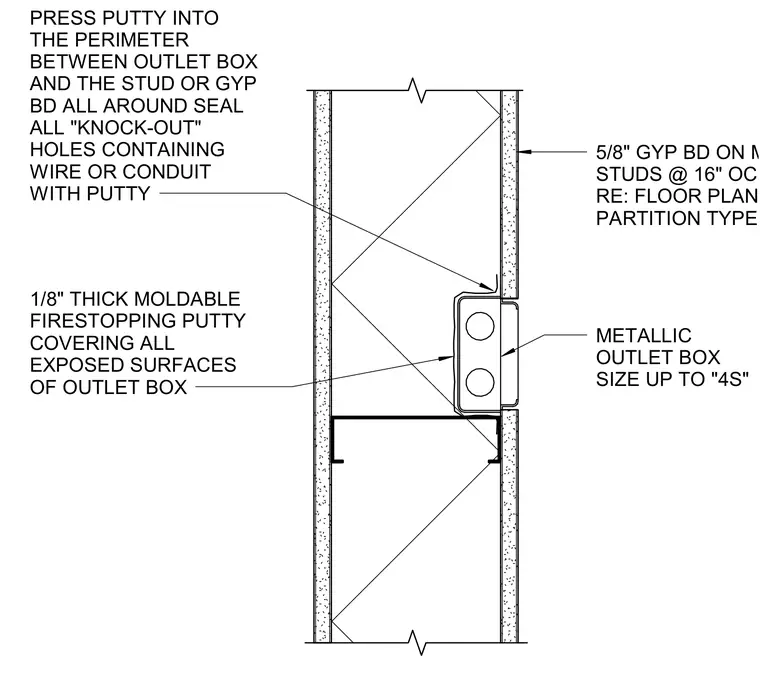

An electrical outlet box is installed within a partition framed with metal studs at sixteen inches on center and finished with five-eighths inch gypsum board on both sides. A one-eighth inch thick moldable firestopping putty covers all exposed surfaces of the metallic outlet box, which is sized up to four-square. Moldable putty is pressed into the perimeter between the outlet box and the stud or gypsum board all around. All knock-out holes containing wire or conduit are sealed with putty.
5/8" GYP BD ON METAL STUDS @ 16" OC RE: FLOOR PLANS FOR PARTITION TYPE PRESS PUTTY INTO THE PERIMETER BETWEEN OUTLET BOX AND THE STUD OR GYP BD ALL AROUND SEAL ALL "KNOCK-OUT" HOLES CONTAINING WIRE OR CONDUIT WITH PUTTY METALLIC OUTLET BOX SIZE UP TO "4S" 1/8" THICK MOLDABLE FIRESTOPPING PUTTY COVERING ALL EXPOSED SURFACES OF OUTLET BOX
