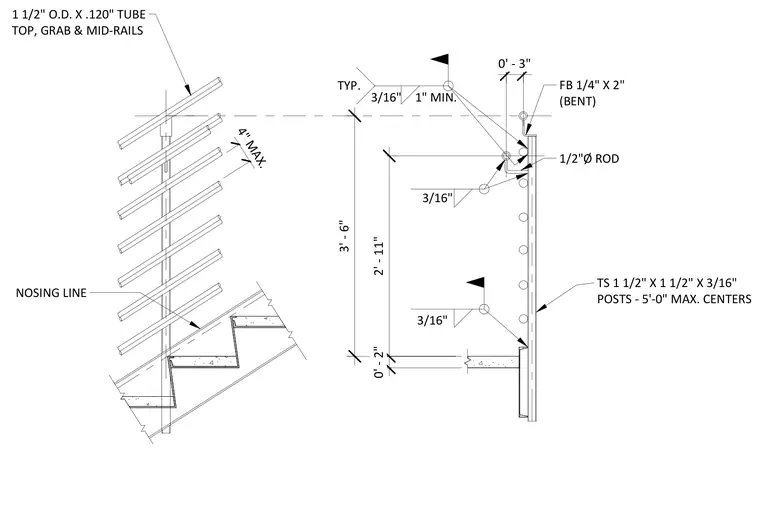

A standard stair handrail assembly anchors to concrete stairs. Structural steel tubing measuring 1 1/2 inches by 1 1/2 inches by 3/16 inch serves as posts spaced at a maximum of 5'-0" on center. The top rail, grab rail, and mid-rails are constructed from 1 1/2 inch outside diameter by .120 inch wall steel tubing. A bent flat bar measuring 1/4 inch by 2 inches supports the intermediate rails alongside 1/2 inch diameter steel rods spaced with a maximum opening of 4 inches. The assembly maintains a typical 3'-6" total height above the stair nosing line with specific dimensional clearances.
TS 1 1/2" X 1 1/2" X 3/16" POSTS - 5'-0" MAX. CENTERS 1 1/2" O.D. X .120" TUBE TOP, GRAB & MID-RAILS NOSING LINE 1" MIN. 3/16" TYP. FB 1/4" X 2" (BENT) 3/16" 1/2"Ø ROD 3/16" 4" MAX. 2' - 11" 0' - 2" 3' - 6" 0' - 3"
