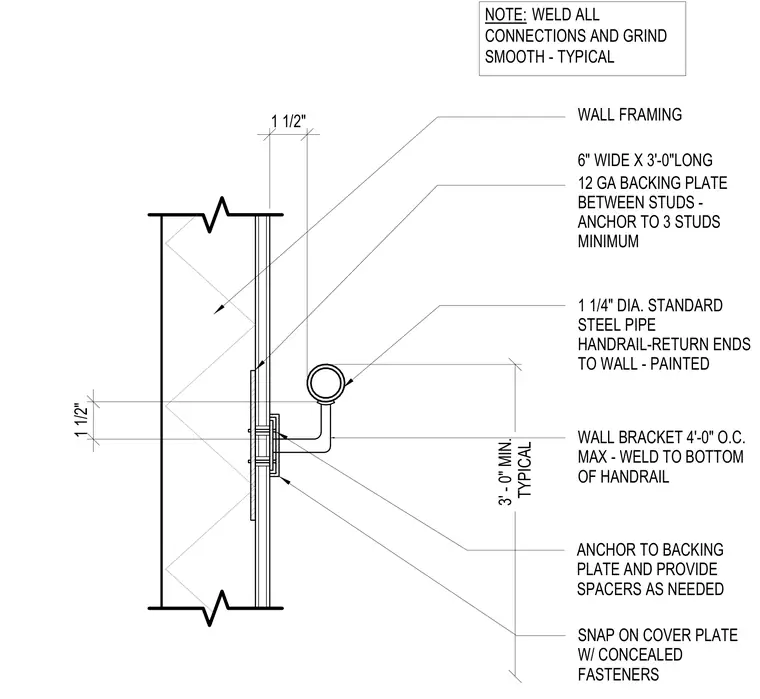

A 1-1/4 inch diameter standard steel pipe handrail is anchored to wood or metal wall framing using painted wall brackets spaced at a maximum of 4 feet on center. The brackets weld to the bottom of the handrail and secure to a 12 gauge backing plate measuring 6 inches wide by 3 feet long installed between studs. The backing plate anchors to a minimum of three studs. A snap-on cover plate with concealed fasteners attaches to the backing plate with spacers provided as needed. All connections are welded and ground smooth.
1 1/2" 1 1/2" 3' - 0" MIN. TYPICAL 12 GA BACKING PLATE BETWEEN STUDS - ANCHOR TO 3 STUDS MINIMUM 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL-RETURN ENDS TO WALL - PAINTED WALL BRACKET 4'-0" O.C. MAX - WELD TO BOTTOM OF HANDRAIL SNAP ON COVER PLATE W/ CONCEALED FASTENERS ANCHOR TO BACKING PLATE AND PROVIDE SPACERS AS NEEDED NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH - TYPICAL WALL FRAMING 6" WIDE X 3'-0"LONG
