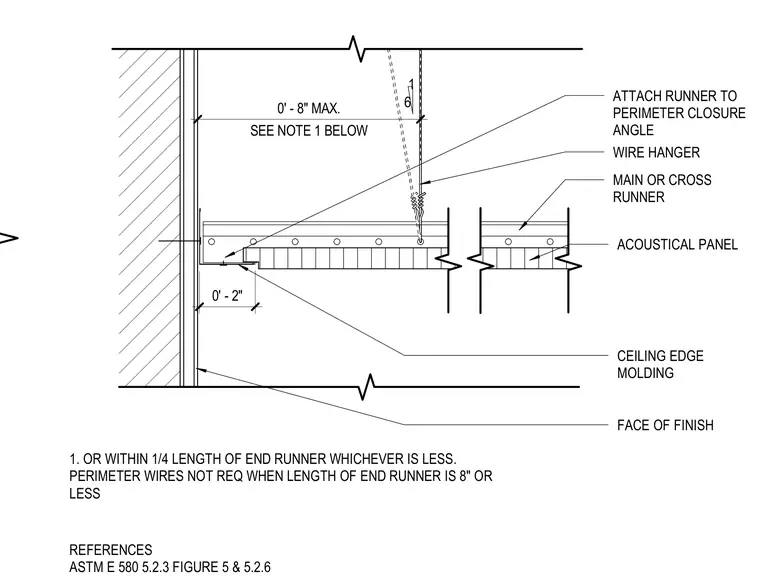

An acoustical panel ceiling edge meets a perimeter wall with a ceiling edge molding supporting the main or cross runner. A wire hanger suspends the runner at a specified distance from the perimeter closure angle, maintaining a maximum spacing of eight inches or within one quarter the length of the end runner. Perimeter wires are omitted when the end runner length is eight inches or less. Installation conforms to ASTM E 580 requirements.
FACE OF FINISH ATTACH RUNNER TO PERIMETER CLOSURE ANGLE SEE NOTE 1 BELOW 0' - 8" MAX. 1. OR WITHIN 1/4 LENGTH OF END RUNNER WHICHEVER IS LESS. PERIMETER WIRES NOT REQ WHEN LENGTH OF END RUNNER IS 8" OR LESS 1 6 0' - 2" REFERENCES ASTM E 580 5.2.3 FIGURE 5 & 5.2.6 WIRE HANGER MAIN OR CROSS RUNNER ACOUSTICAL PANEL CEILING EDGE MOLDING
