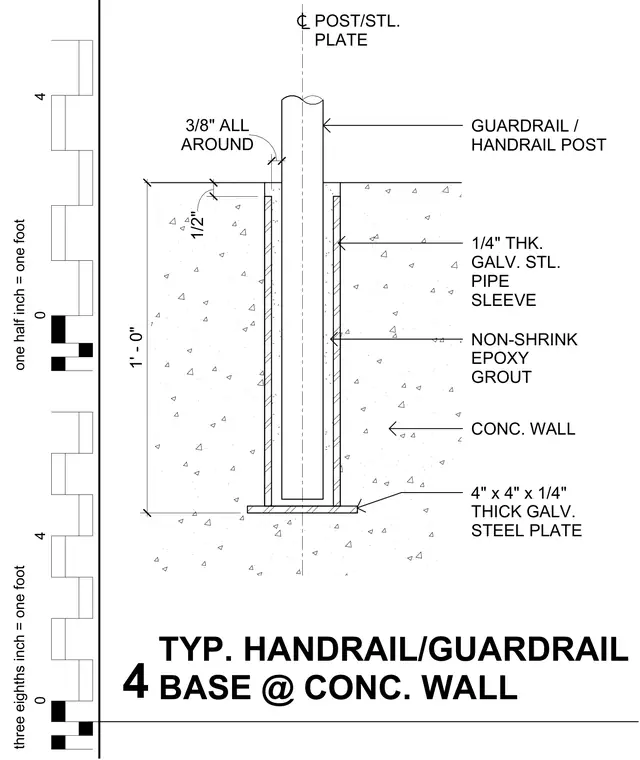

A guardrail or handrail post extends down into a one-foot-deep, quarter-inch-thick galvanized steel pipe sleeve embedded within a concrete wall. The post rests on a four-inch by four-inch by quarter-inch thick galvanized steel plate welded with a three-eighths-inch weld all around at its base. The annular space between the post and the pipe sleeve is filled with non-shrink epoxy grout, leaving a half-inch clearance at the top surface.
GUARDRAIL / HANDRAIL POST 1/4" THK. GALV. STL. PIPE SLEEVE 1' - 0" 1/2" AROUND 3/8" ALL POST/STL. PLATE NON-SHRINK EPOXY GROUT 4" x 4" x 1/4" THICK GALV. STEEL PLATE CONC. WALL one half inch = one foot 4 0 three eighths inch = one foot 4 0 4 TYP. HANDRAIL/GUARDRAIL BASE @ CONC. WALL
