A ticket counter conveyor assembly incorporates an eight-inch fire and security door designed to close directly to the floor. The assembly features a stainless steel front trim, a variable stainless steel back guard, and a black strip draft curtain with stainless steel trim. A stainless steel end cap with a toe relief required on one side completes the end termination. Controls are managed via a door control station and a secondary control station adjacent to the conveyor run.

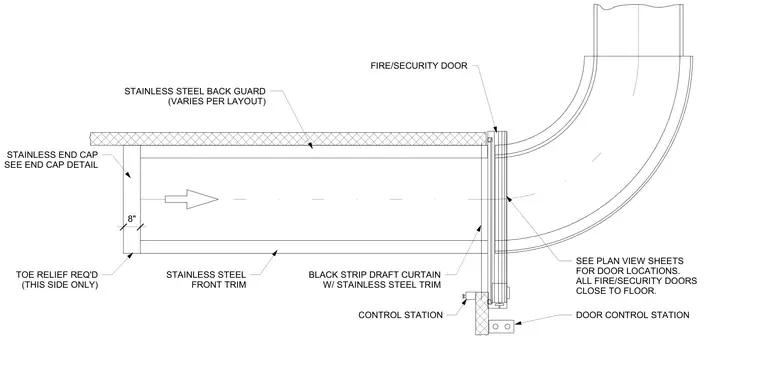

8" FIRE/SECURITY DOOR SEE PLAN VIEW SHEETS FOR DOOR LOCATIONS. ALL FIRE/SECURITY DOORS CLOSE TO FLOOR. DOOR CONTROL STATION CONTROL STATION BLACK STRIP DRAFT CURTAIN W/ STAINLESS STEEL TRIM STAINLESS STEEL FRONT TRIM TOE RELIEF REQ'D (THIS SIDE ONLY) STAINLESS END CAP SEE END CAP DETAIL STAINLESS STEEL BACK GUARD (VARIES PER LAYOUT)
