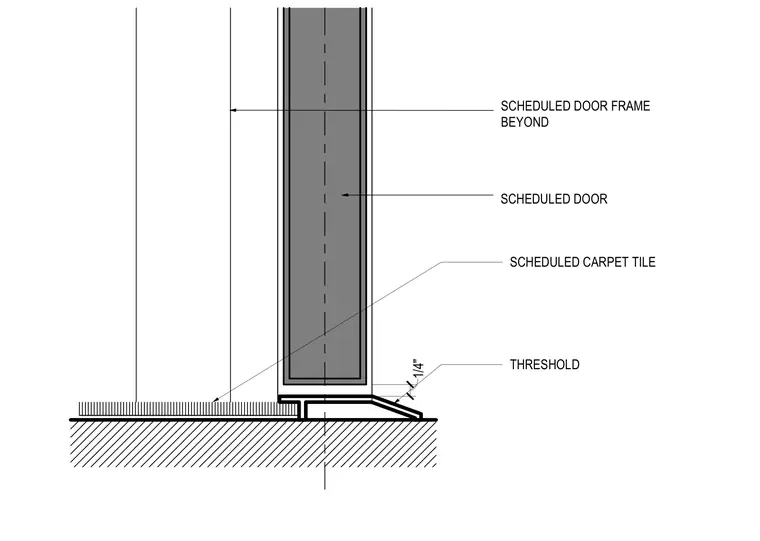

A scheduled door and door frame sit above a one-quarter-inch threshold mounted to a concrete substrate. Scheduled carpet tile abuts the threshold assembly on one side. The threshold provides a smooth transition between the interior flooring finish and the door bottom.
