A wall-mounted whiteboard and marker tray are installed over a partition built per schedule with type two backing. The board is secured using angle clips fastened to the wall backing per manufacturer requirements. Mounting heights are coordinated with interior elevations.

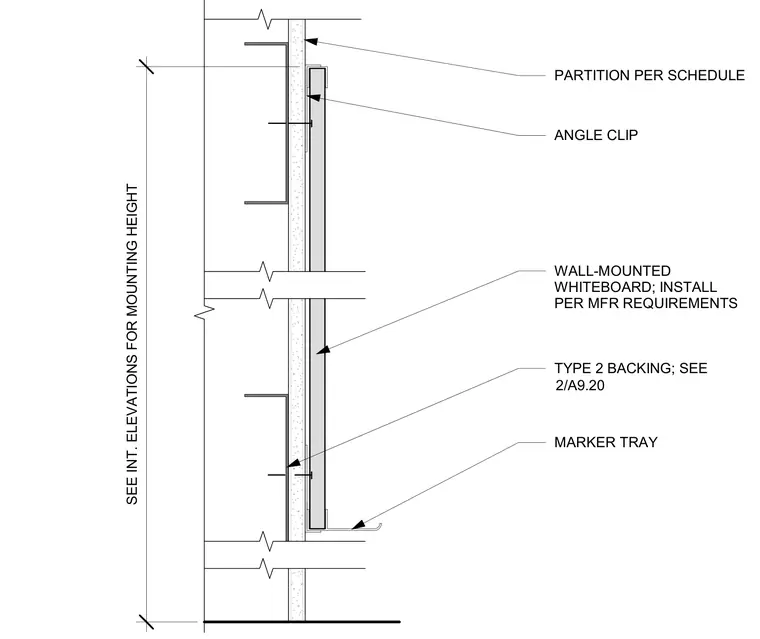

MARKER TRAY WALL-MOUNTED WHITEBOARD; INSTALL PER MFR REQUIREMENTS TYPE 2 BACKING; SEE ANGLE CLIP SEE INT. ELEVATIONS FOR MOUNTING HEIGHT PARTITION PER SCHEDULE 2/A9.20
