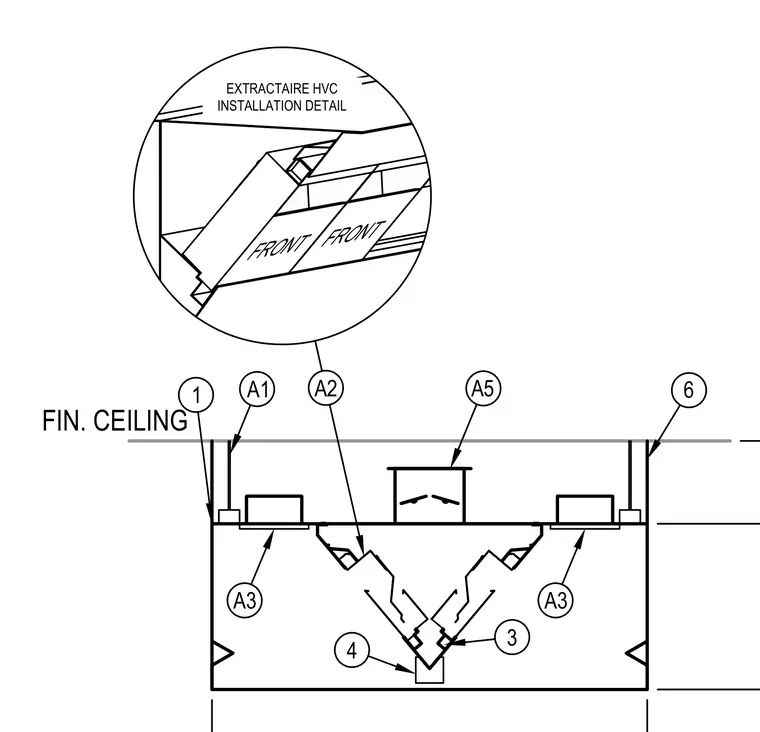

An Extractaire HVC unit is installed within a finished ceiling assembly with associated framing and support hangers. The equipment integrates into the ceiling plane alongside recessed fixtures.
4 3 A2 EXTRACTAIRE HVC INSTALLATION DETAIL FRONT FRONT A5 FIN. CEILING 1 A3 A3 A1 6
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
