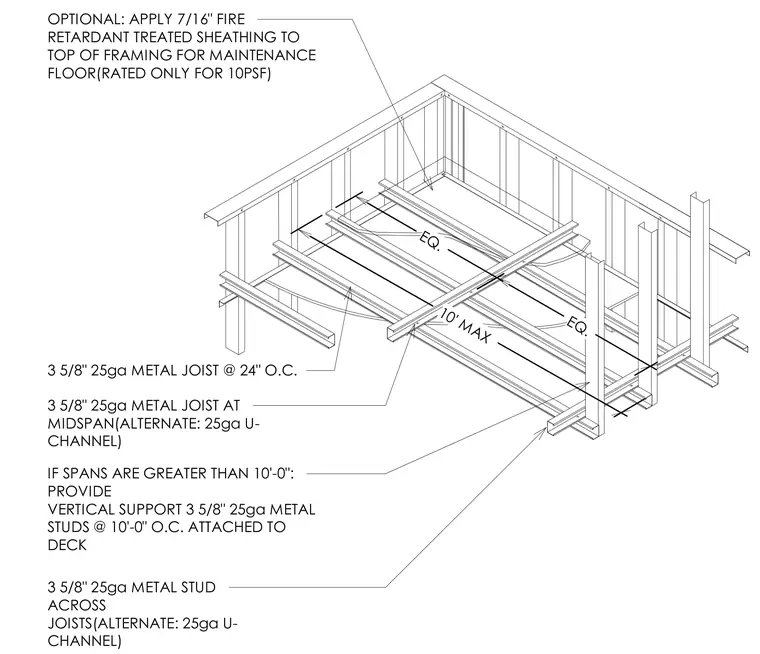

The ceiling framework consists of 3-5/8 inch 25-gauge metal joists spaced at 24 inches on center. A transverse 3-5/8 inch 25-gauge metal joist or alternative U-channel runs at midspan. When spans exceed 10 feet, vertical support is provided by 3-5/8 inch 25-gauge metal studs spaced at 10 feet on center and attached to the overhead deck. An optional 7/16-inch fire retardant treated sheathing is applied to the top of the framing to form a maintenance floor rated for 10 psf.
3 5/8" 25ga METAL JOIST AT MIDSPAN(ALTERNATE: 25ga U- CHANNEL) 3 5/8" 25ga METAL JOIST @ 24" O.C. IF SPANS ARE GREATER THAN 10'-0": PROVIDE VERTICAL SUPPORT 3 5/8" 25ga METAL STUDS @ 10'-0" O.C. ATTACHED TO DECK 3 5/8" 25ga METAL STUD ACROSS JOISTS(ALTERNATE: 25ga U- CHANNEL) 10' MAX EQ. EQ. OPTIONAL: APPLY 7/16" FIRE RETARDANT TREATED SHEATHING TO TOP OF FRAMING FOR MAINTENANCE FLOOR(RATED ONLY FOR 10PSF)
