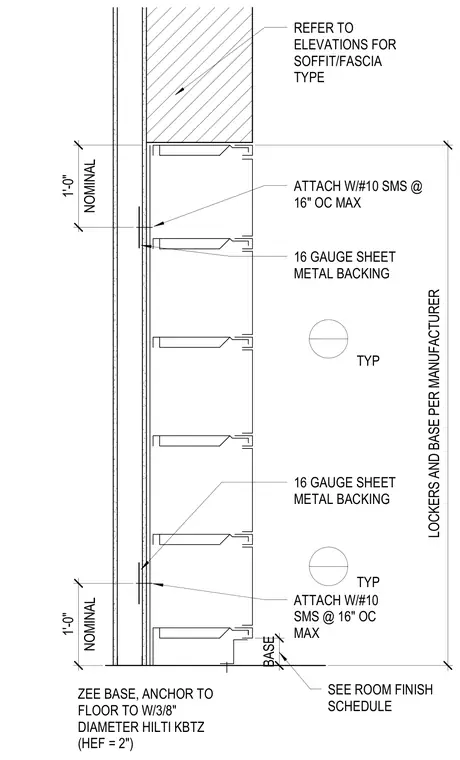

Sixteen-gauge sheet metal backing is secured with number ten sheet metal screws spaced at a maximum of sixteen inches on center. A zee base is anchored to the floor using three-eighths-inch diameter Hilti KBTZ expansion anchors with a two-inch effective embedment depth. Lockers and base are installed per manufacturer specifications with nominal one-foot vertical dimensions. Soffit and fascia types are coordinated with interior elevations, and the base finish is selected per the room finish schedule.
REFER TO ELEVATIONS FOR SOFFIT/FASCIA TYPE LOCKERS AND BASE PER MANUFACTURER NOMINAL 1'-0" NOMINAL 1'-0" ATTACH W/#10 SMS @ 16" OC MAX 16 GAUGE SHEET METAL BACKING 16 GAUGE SHEET METAL BACKING ATTACH W/#10 SMS @ 16" OC MAX BASE SEE ROOM FINISH SCHEDULE ZEE BASE, ANCHOR TO FLOOR TO W/3/8" DIAMETER HILTI KBTZ (HEF = 2") TYP TYP
