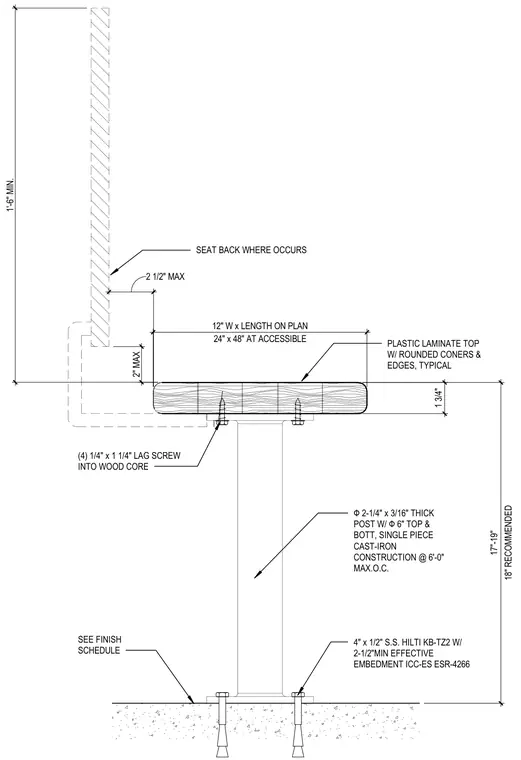

A single-piece cast-iron post supports a bench top and optional seat back. The post consists of a 2-1/4 inch diameter by 3/16 inch thick shaft with 6-inch diameter top and bottom flanges, spaced at a maximum of 6 feet on center. The base plate is anchored to the floor slab using four 1/2-inch diameter stainless steel Hilti KB-TZ2 expansion anchors with a 2-1/2 inch minimum effective embedment per ICC-ES ESR-4266. The bench top features a plastic laminate surface over a wood core, secured to the top post flange with four 1/4-inch by 1-1/4 inch lag screws.
(4) 1/4" x 1 1/4" LAG SCREW INTO WOOD CORE SEE FINISH SCHEDULE Ф 2-1/4" x 3/16" THICK POST W/ Ф 6" TOP & BOTT, SINGLE PIECE CAST-IRON CONSTRUCTION @ 6'-0" MAX.O.C. 4" x 1/2" S.S. HILTI KB-TZ2 W/ 2-1/2"MIN EFFECTIVE EMBEDMENT ICC-ES ESR-4266 24" x 48" AT ACCESSIBLE 12" W x LENGTH ON PLAN PLASTIC LAMINATE TOP W/ ROUNDED CONERS & EDGES, TYPICAL 1 3/4" 18" RECOMMENDED 17"-19" 2 1/2" MAX 2" MAX 1'-6" MIN. SEAT BACK WHERE OCCURS
