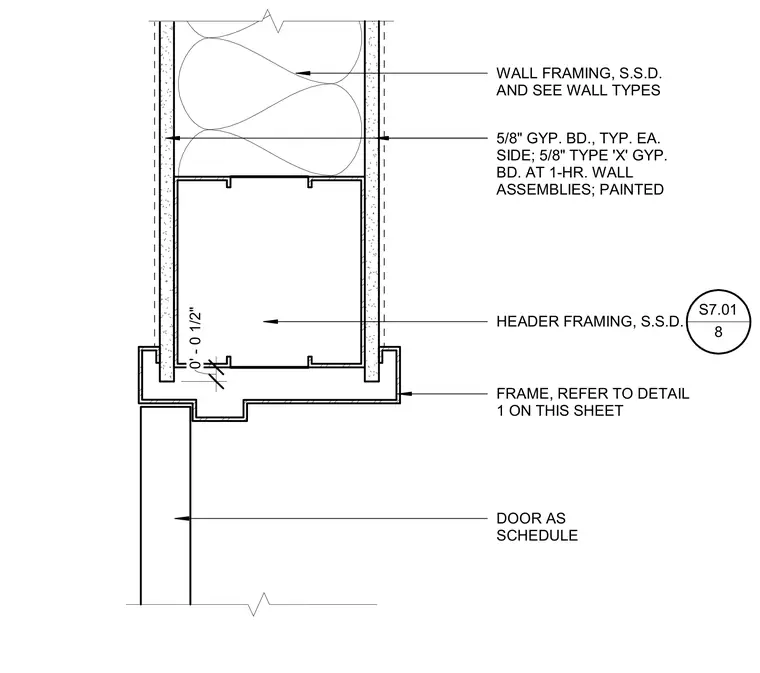

The interior door head assembly features a hollow metal frame installed below header framing and steel stud wall framing sized per structural and door schedules. Each side of the wall is finished with five-eighths-inch gypsum board, upgraded to Type X at one-hour fire-rated assemblies and painted. The door is provided per schedule.
DOOR AS SCHEDULE HEADER FRAMING, S.S.D. WALL FRAMING, S.S.D. AND SEE WALL TYPES FRAME, REFER TO DETAIL 1 ON THIS SHEET 0' - 0 1/2" 5/8" GYP. BD., TYP. EA. SIDE; 5/8" TYPE 'X' GYP. BD. AT 1-HR. WALL ASSEMBLIES; PAINTED S7.01 8
