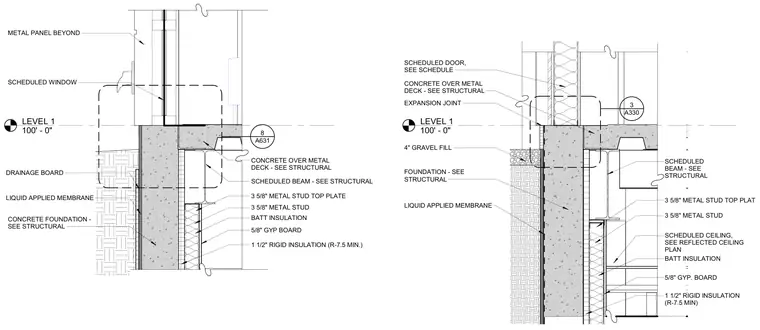

Floor-to-foundation transition at Level 1, referencing a structural concrete foundation wall protected by a liquid-applied membrane and drainage board. The concrete over metal deck floor slab bears on a scheduled steel beam supported by structural framing. Below the floor level, three and five-eighths inch metal studs are insulated with batt insulation and one and one-half inch rigid insulation with a minimum R-7.5 value, finished with five-eighths inch gypsum board. An expansion joint is incorporated at the slab edge adjacent to the wall assembly.
LEVEL 1 100' - 0" FOUNDATION - SEE STRUCTURAL SCHEDULED BEAM - SEE STRUCTURAL SCHEDULED CEILING, SEE REFLECTED CEILING PLAN SCHEDULED DOOR, SEE SCHEDULE 1 1/2" RIGID INSULATION (R-7.5 MIN) 3 5/8" METAL STUD 5/8" GYP. BOARD CONCRETE OVER METAL DECK - SEE STRUCTURAL EXPANSION JOINT BATT INSULATION LIQUID APPLIED MEMBRANE 3 5/8" METAL STUD TOP PLAT 4" GRAVEL FILL A330 3 LEVEL 1 100' - 0" A631 8 CONCRETE FOUNDATION - SEE STRUCTURAL 1 1/2" RIGID INSULATION (R-7.5 MIN.) BATT INSULATION 3 5/8" METAL STUD 5/8" GYP BOARD CONCRETE OVER METAL DECK - SEE STRUCTURAL SCHEDULED WINDOW METAL PANEL BEYOND 3 5/8" METAL STUD TOP PLATE LIQUID APPLIED MEMBRANE SCHEDULED BEAM - SEE STRUCTURAL DRAINAGE BOARD
