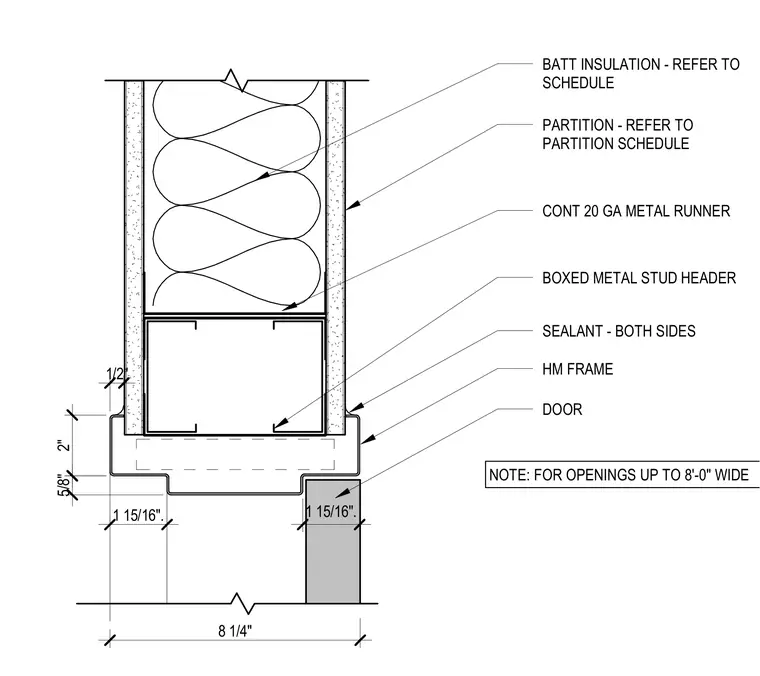

A door head condition within a cold-formed steel metal stud partition for openings up to 8'-0" wide. A continuous 20 gauge metal runner sits above a boxed metal stud header, which spans the door opening. Batt insulation fills the partition cavity behind the gypsum board layers. A hollow metal frame surrounds the door opening with sealant applied on both sides at the wall junction.
BATT INSULATION - REFER TO SCHEDULE PARTITION - REFER TO PARTITION SCHEDULE CONT 20 GA METAL RUNNER SEALANT - BOTH SIDES HM FRAME DOOR NOTE: FOR OPENINGS UP TO 8'-0" WIDE 2" 1/2" 1 15/16". BOXED METAL STUD HEADER 5/8" 8 1/4" 1 15/16".
