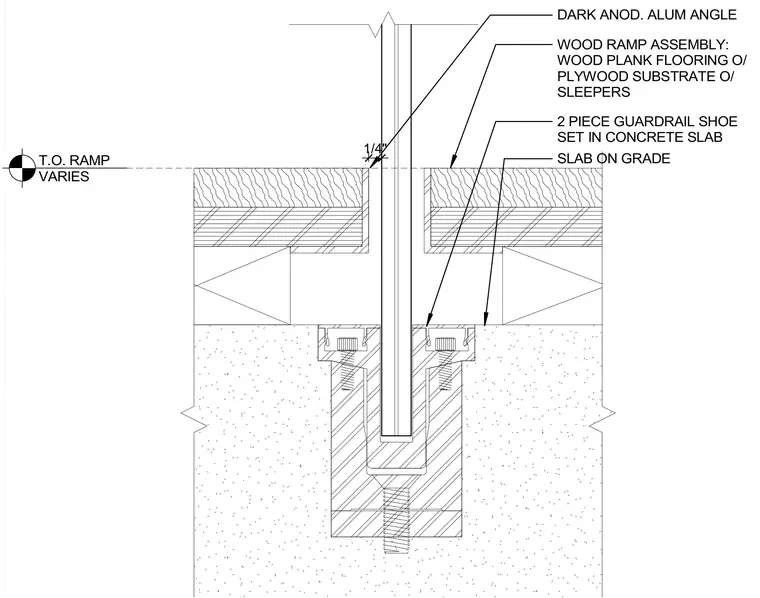

A glass guardrail with a two-piece guardrail shoe is set into a concrete slab on grade, anchored below the walking surface. The wood ramp assembly consists of wood plank flooring over a plywood substrate supported by sleepers. A one-quarter-inch dark anodized aluminum angle finishes the edge of the wood ramp assembly adjacent to the glass balustrade.
T.O. RAMP VARIES WOOD RAMP ASSEMBLY: WOOD PLANK FLOORING O/ PLYWOOD SUBSTRATE O/ SLEEPERS 2 PIECE GUARDRAIL SHOE SET IN CONCRETE SLAB SLAB ON GRADE 1/4" DARK ANOD. ALUM ANGLE
