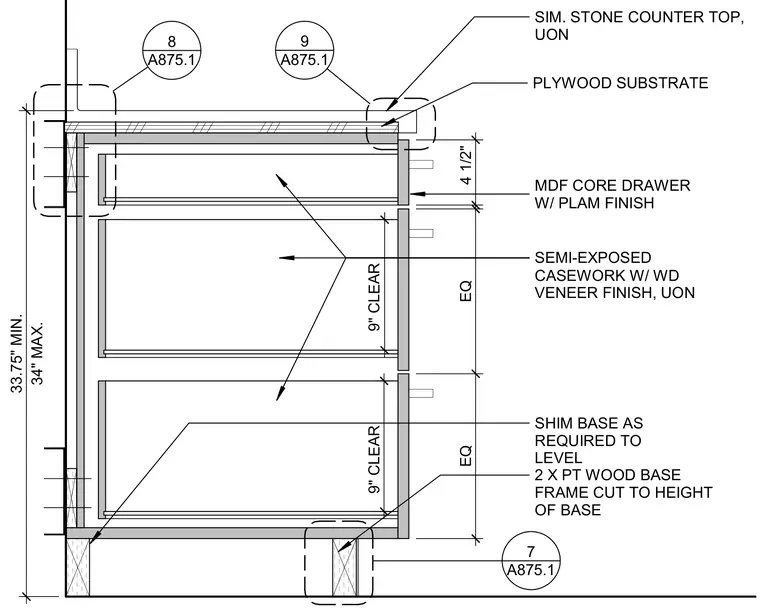

This interior millwork detail shows a base cabinet assembly with a simulated stone countertop set over a plywood substrate. The cabinet body consists of semi-exposed casework with a wood veneer finish unless otherwise noted, housing three medium-density fiberboard core drawers with plastic laminate finishes and equal vertical clearances. The unit rests on a pressure-treated wood base frame that is cut to height and shimmed as required for leveling.
SIM. STONE COUNTER TOP, UON 2 X PT WOOD BASE FRAME CUT TO HEIGHT OF BASE SHIM BASE AS REQUIRED TO LEVEL PLYWOOD SUBSTRATE A875.1 7 A875.1 8 MDF CORE DRAWER W/ PLAM FINISH A875.1 9 4 1/2" SEMI-EXPOSED CASEWORK W/ WD VENEER FINISH, UON 34" MAX. 33.75" MIN. EQ EQ 9" CLEAR 9" CLEAR
