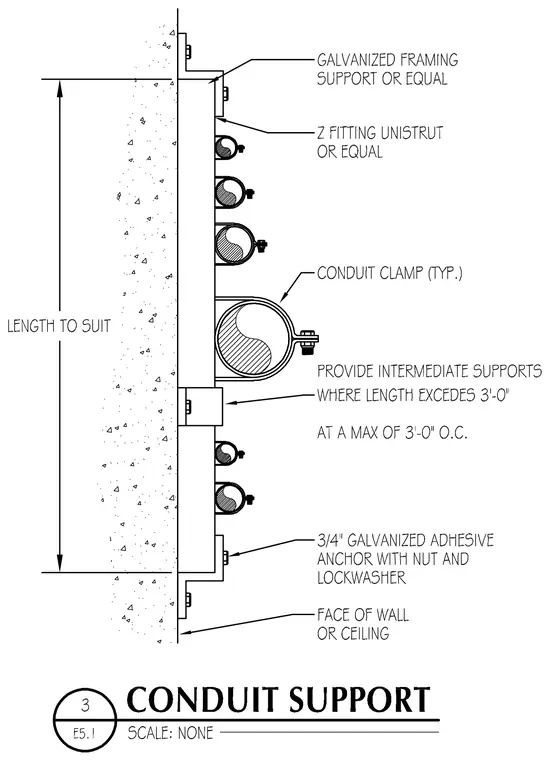

Electrical conduits of varying diameters attach to a Z-fitting Unistrut channel or equal, which mounts to a galvanized framing support or equal. The assembly secures to the face of a concrete wall or ceiling using three-quarter-inch galvanized adhesive anchors complete with nuts and lockwashers. Conduit clamps secure each individual run within the strut channel. Intermediate supports install at a maximum of three feet on center wherever the length exceeds three feet.
