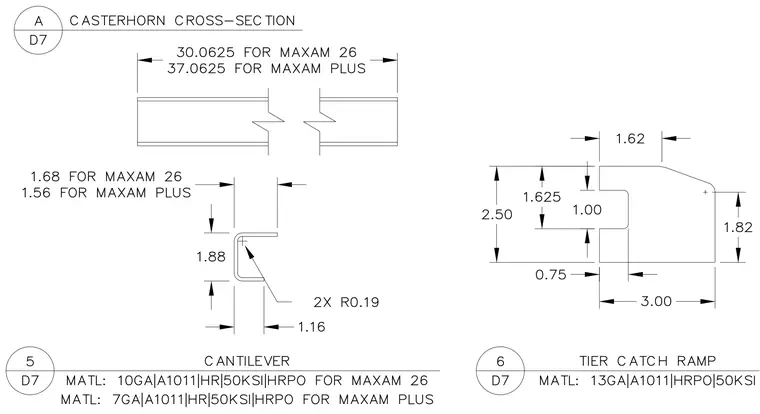

This drawing provides cross-sectional profiles and dimensional layouts for steel ramp components used in Maxam 26 and Maxam Plus systems. The cantilever detail specifies ten-gauge or seven-gauge hot-rolled pickled and oiled steel conforming to ASTM A1011 with a fifty ksi yield strength, depending on the specific system. The tier catch ramp detail specifies thirteen-gauge ASTM A1011 hot-rolled pickled and oiled steel with a fifty ksi yield strength. Comprehensive linear dimensions define the widths, heights, radii, and offsets for each formed steel profile.
30.0625 FOR MAXAM 26 37.0625 FOR MAXAM PLUS 1.88 2X R0.19 1.16 1.68 FOR MAXAM 26 1.56 FOR MAXAM PLUS 1.82 0.75 2.50 3.00 1.625 1.00 1.62 CASTERHORN CROSS-SECTION A D7 CANTILEVER 5 D7 MATL: 10GA|A1011|HR|50KSI|HRPO FOR MAXAM 26 TIER CATCH RAMP 6 D7 MATL: 13GA|A1011|HRPO|50KSI MATL: 7GA|A1011|HR|50KSI|HRPO FOR MAXAM PLUS A + V
