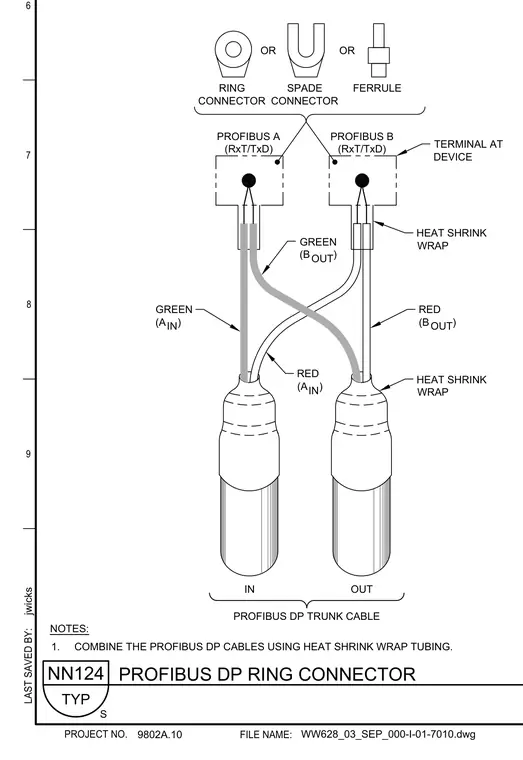

Profibus DP cables are combined using heat shrink wrap tubing. Connections utilize ring connectors, spade connectors, or ferrules. Profibus A and Profibus B lines are connected to device terminals with incoming and outgoing green and red conductors.
NN124 TYP PROFIBUS DP RING CONNECTOR S RED (B ) OUT IN HEAT SHRINK WRAP GREEN (A ) IN NOTES: 1. COMBINE THE PROFIBUS DP CABLES USING HEAT SHRINK WRAP TUBING. PROFIBUS A (RxT/TxD) PROFIBUS B (RxT/TxD) OUT RING CONNECTOR SPADE CONNECTOR FERRULE OR OR HEAT SHRINK WRAP IN OUT PROFIBUS DP TRUNK CABLE RED (A ) GREEN (B ) TERMINAL AT DEVICE PROJECT NO. LAST SAVED BY: FILE NAME: WW628_03_SEP_000-I-01-7010.dwg jwicks 9802A.10 9 8 7 6
