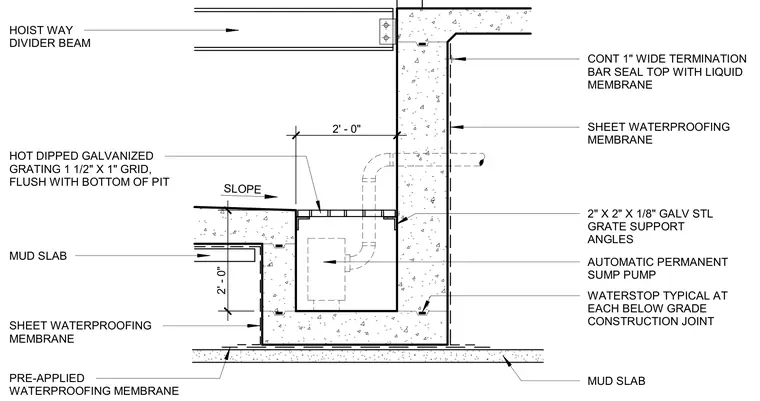

A pre-applied waterproofing membrane lies beneath the mud slab supporting the foundation walls. A continuous sheet waterproofing membrane wraps the exterior of the concrete walls and terminates at a continuous one-inch wide termination bar sealed at the top with liquid membrane. Below-grade construction joints incorporate waterstops to prevent moisture ingress. A concrete sump pit features an automatic permanent sump pump and hot-dipped galvanized grating supported by two-by-two by one-eighth inch galvanized steel angles, flush with the bottom of the pit. A hoistway divider beam connects to the upper concrete structure adjacent to the elevator pit.
SLOPE 2" X 2" X 1/8" GALV STL GRATE SUPPORT ANGLES HOIST WAY DIVIDER BEAM WATERSTOP TYPICAL AT EACH BELOW GRADE CONSTRUCTION JOINT AUTOMATIC PERMANENT SUMP PUMP SHEET WATERPROOFING MEMBRANE CONT 1" WIDE TERMINATION BAR SEAL TOP WITH LIQUID MEMBRANE MUD SLAB SHEET WATERPROOFING MEMBRANE MUD SLAB PRE-APPLIED WATERPROOFING MEMBRANE HOT DIPPED GALVANIZED GRATING 1 1/2" X 1" GRID, FLUSH WITH BOTTOM OF PIT 2' - 0" 2' - 0"
