Text on the drawing

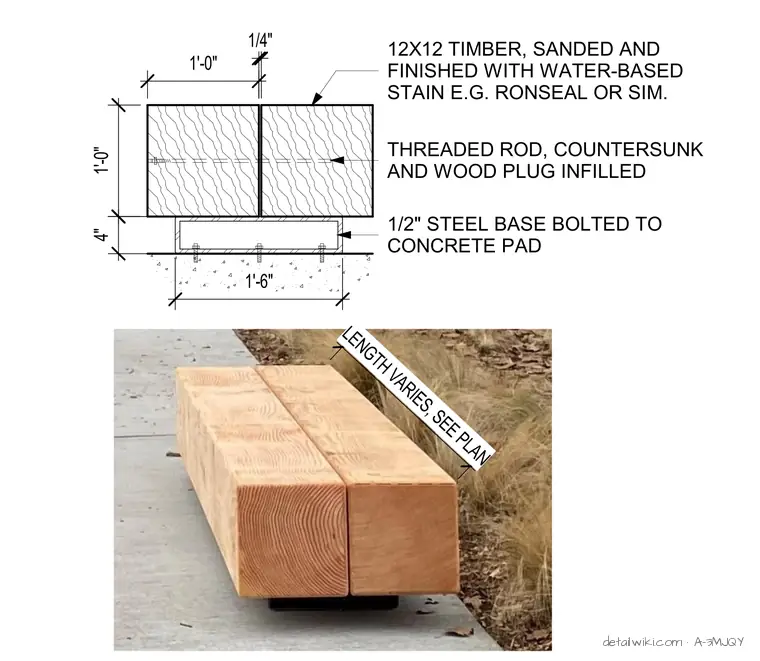

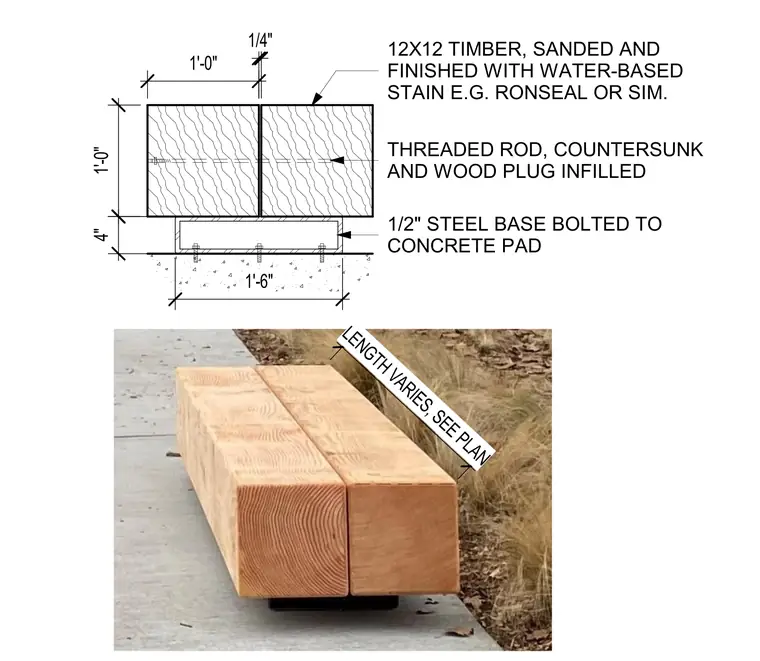

1'-0" 1'-0" 4" 1/4" 1'-6" 12X12 TIMBER, SANDED AND FINISHED WITH WATER-BASED STAIN E.G. RONSEAL OR SIM. 1/2" STEEL BASE BOLTED TO CONCRETE PAD THREADED ROD, COUNTERSUNK AND WOOD PLUG INFILLED LENGTH VARIES, SEE PLAN
