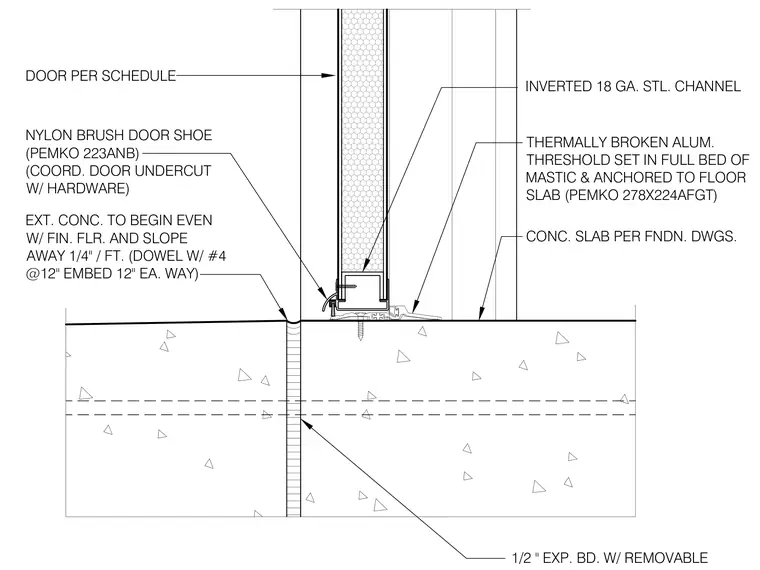

An exterior door sill assembly transitions between the door leaf and the concrete floor slab. A thermally broken aluminum threshold rests in a full bed of mastic, anchored directly to the concrete slab and housing an inverted 18-gauge steel channel at the base of the door. A nylon brush door shoe attaches to the bottom of the door, coordinated with the hardware undercut. Exterior concrete begins flush with the finished floor and slopes away at one-quarter inch per foot, reinforced with number four dowels spaced at twelve inches each way. A half-inch expansion board with a removable section separates the exterior slab from the foundation.
DOOR PER SCHEDULE 1/2 " EXP. BD. W/ REMOVABLE CONC. SLAB PER FNDN. DWGS. EXT. CONC. TO BEGIN EVEN W/ FIN. FLR. AND SLOPE AWAY 1/4" / FT. (DOWEL W/ #4 @12" EMBED 12" EA. WAY) NYLON BRUSH DOOR SHOE (PEMKO 223ANB) (COORD. DOOR UNDERCUT W/ HARDWARE) THERMALLY BROKEN ALUM. THRESHOLD SET IN FULL BED OF MASTIC & ANCHORED TO FLOOR SLAB (PEMKO 278X224AFGT) INVERTED 18 GA. STL. CHANNEL
