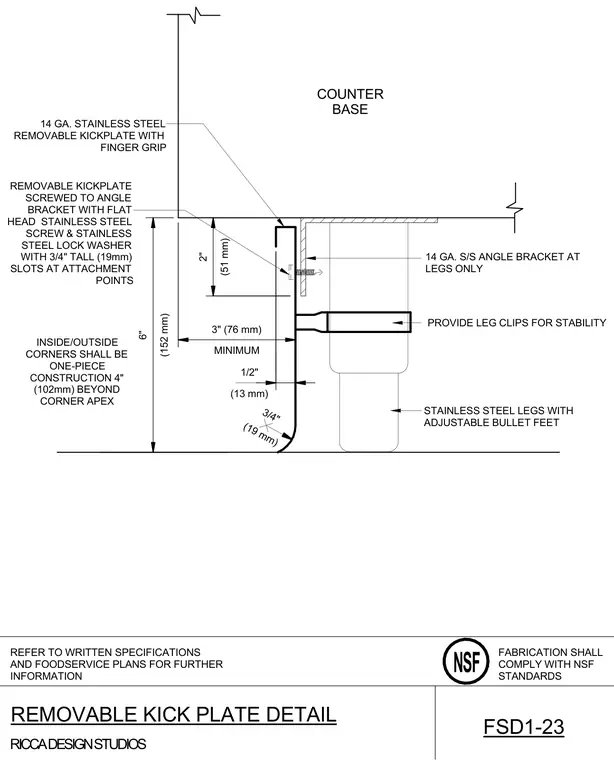

A 14 gauge stainless steel removable kick plate with an integrated finger grip mounts to a counter base. The kick plate attaches to a 14 gauge stainless steel angle bracket located at the support legs only, secured with flat head stainless steel screws and stainless steel lock washers through three-quarter inch tall slotted attachment points. The assembly provides a minimum six-inch clearance to the finished floor, with stainless steel legs featuring adjustable bullet feet and stabilizing leg clips. Inside and outside corners are fabricated as a one-piece construction extending four inches beyond the corner apex. All fabrication complies with National Sanitation Foundation standards.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF (13 mm) 1/2" (51 mm) 2" (152 mm) 6" MINIMUM 3" (76 mm) 14 GA. STAINLESS STEEL REMOVABLE KICKPLATE WITH FINGER GRIP 14 GA. S/S ANGLE BRACKET AT LEGS ONLY STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET COUNTER BASE PROVIDE LEG CLIPS FOR STABILITY INSIDE/OUTSIDE CORNERS SHALL BE ONE-PIECE CONSTRUCTION 4" (102mm) BEYOND CORNER APEX REMOVABLE KICKPLATE SCREWED TO ANGLE BRACKET WITH FLAT HEAD STAINLESS STEEL SCREW & STAINLESS STEEL LOCK WASHER WITH 3/4" TALL (19mm) SLOTS AT ATTACHMENT POINTS REMOVABLE KICK PLATE DETAIL FSD1-23 (19 mm) 3/4"
