A rated shaftwall top track connects to a structural concrete slab using a metal runner track and a metal J track unless otherwise noted, attached to the structure with minimum one-eighth-inch powder-actuated fasteners at twenty-four inches on center with a one-and-one-quarter-inch minimum embedment. Gypsum board is mounted tight to the concrete structural slab unless otherwise noted above the top of the metal CH stud. Acoustic sealant is applied at partition types as scheduled along with acoustic insulation. Two-hour shaftwall complies with UL U438 and four-hour shaftwall complies with UL U408.

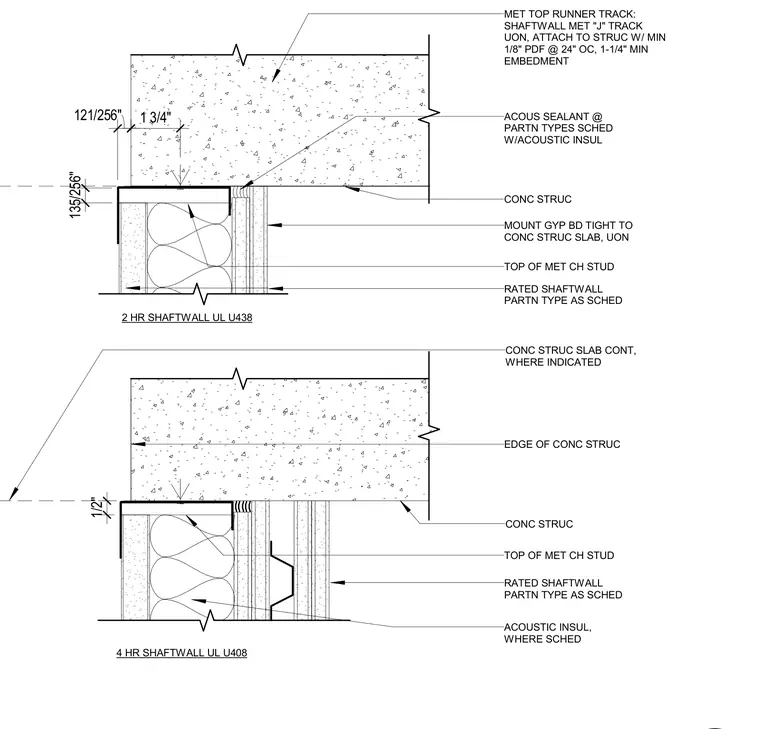

135/256" ACOUS SEALANT @ PARTN TYPES SCHED W/ACOUSTIC INSUL MET TOP RUNNER TRACK: SHAFTWALL MET "J" TRACK UON, ATTACH TO STRUC W/ MIN 1/8" PDF @ 24" OC, 1-1/4" MIN EMBEDMENT CONC STRUC MOUNT GYP BD TIGHT TO CONC STRUC SLAB, UON TOP OF MET CH STUD RATED SHAFTWALL PARTN TYPE AS SCHED 2 HR SHAFTWALL UL U438 CONC STRUC SLAB CONT, WHERE INDICATED CONC STRUC TOP OF MET CH STUD RATED SHAFTWALL PARTN TYPE AS SCHED ACOUSTIC INSUL, WHERE SCHED 4 HR SHAFTWALL UL U408 1/2" EDGE OF CONC STRUC 121/256" 1 3/4"
