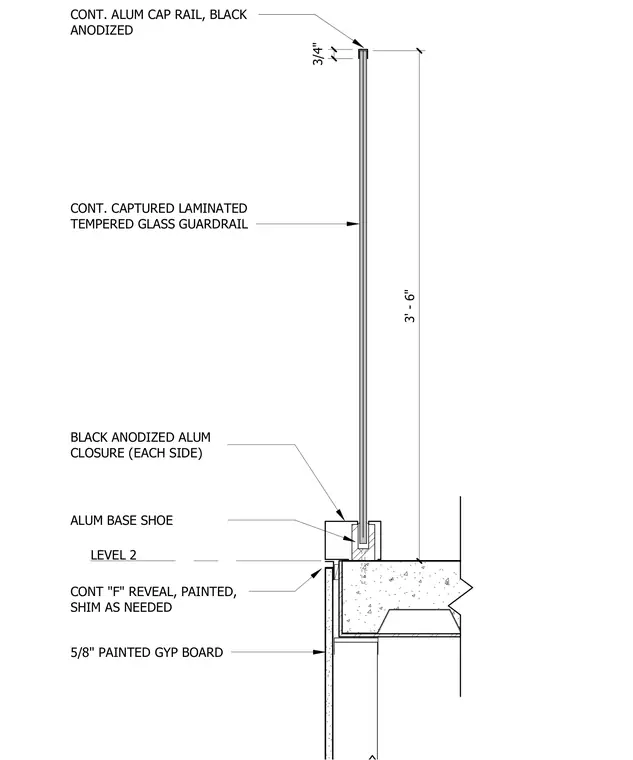

A continuous three-foot six-inch captured laminated tempered glass guardrail stands atop the Level 2 slab edge, finished at the top with a continuous black anodized aluminum cap rail. The glass pane inserts into a continuous aluminum base shoe flanked on each side by three-quarter-inch black anodized aluminum closures. The base shoe mounts to the floor assembly, aligning above a continuous painted F-reveal shimmed as needed. Below the slab edge, five-eighth-inch painted gypsum board finishes the ceiling and wall plane.
3' - 6" CONT. CAPTURED LAMINATED TEMPERED GLASS GUARDRAIL CONT. ALUM CAP RAIL, BLACK ANODIZED 3/4" BLACK ANODIZED ALUM CLOSURE (EACH SIDE) ALUM BASE SHOE CONT "F" REVEAL, PAINTED, SHIM AS NEEDED 5/8" PAINTED GYP BOARD LEVEL 2
