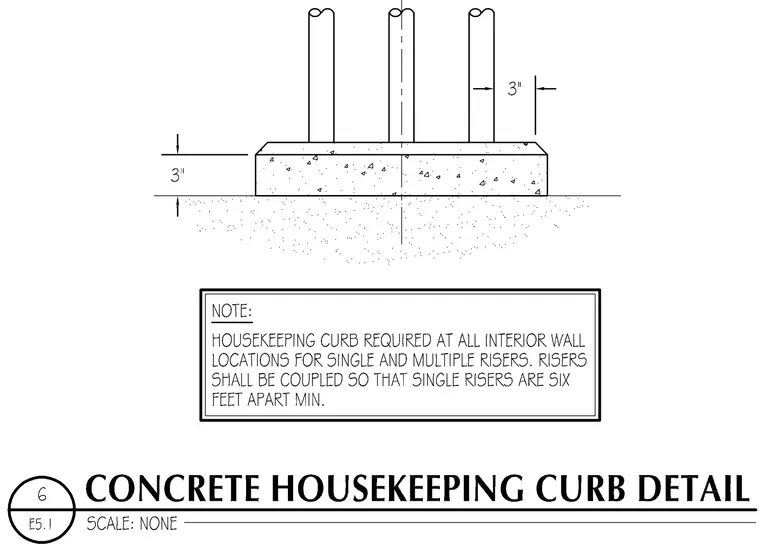

Three vertical risers emerge from a cast-in-place concrete housekeeping curb set upon the floor slab. The curb features a three-inch height and a three-inch offset from the riser pipes. A companion note mandates housekeeping curbs at all interior wall locations for single and multiple risers, requiring risers to be coupled with a minimum spacing of six feet.
