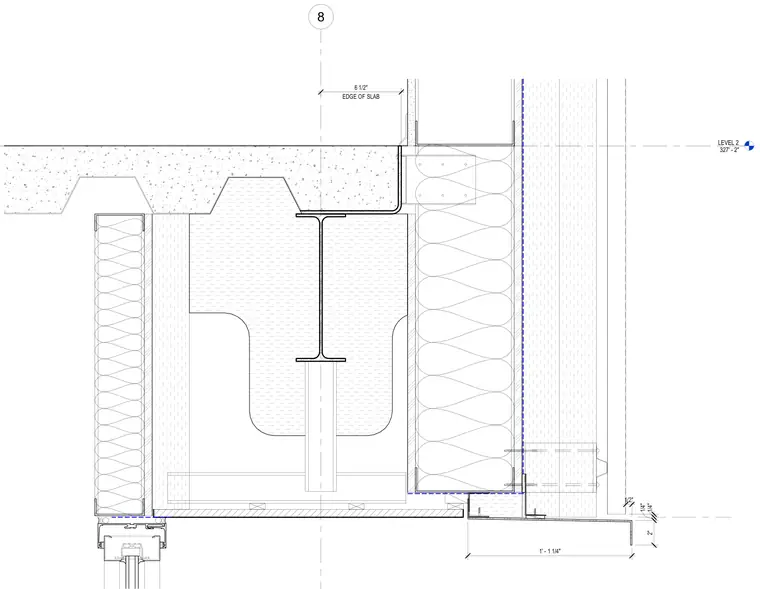

The curtain wall head assembly interfaces with a composite concrete slab on metal deck supported by structural steel framing. The slab edge projects past the structural support with a defined offset, tying into the exterior framing and insulation layers above a glazed opening.
