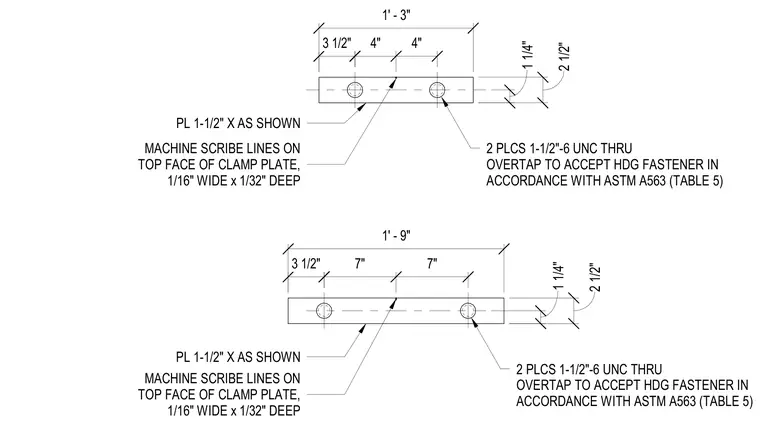

Each steel clamp plate measures one and one-half inches thick and features two threaded holes sized for one and one-half inch -6 UNC fasteners over-tapped to accept hot-dip galvanized fasteners in accordance with ASTM A563 Table 5. The top face of each plate is detailed with machine scribe lines measuring one-sixteenth inch wide by one-thirty-second inch deep. The plates are dimensioned with overall lengths of one foot three inches and one foot nine inches, featuring edge distances and hole spacing clearly laid out for fabrication.
1' - 9" 2 1/2" 3 1/2" 7" 7" 1 1/4" PL 1-1/2" X AS SHOWN 2 PLCS 1-1/2"-6 UNC THRU OVERTAP TO ACCEPT HDG FASTENER IN ACCORDANCE WITH ASTM A563 (TABLE 5) 1' - 3" 2 1/2" 3 1/2" 4" 4" 1 1/4" PL 1-1/2" X AS SHOWN 2 PLCS 1-1/2"-6 UNC THRU OVERTAP TO ACCEPT HDG FASTENER IN ACCORDANCE WITH ASTM A563 (TABLE 5) MACHINE SCRIBE LINES ON TOP FACE OF CLAMP PLATE, 1/16" WIDE x 1/32" DEEP MACHINE SCRIBE LINES ON TOP FACE OF CLAMP PLATE, 1/16" WIDE x 1/32" DEEP
