Architectural · A-3KTVG

Signage - Room Identification

About this detail

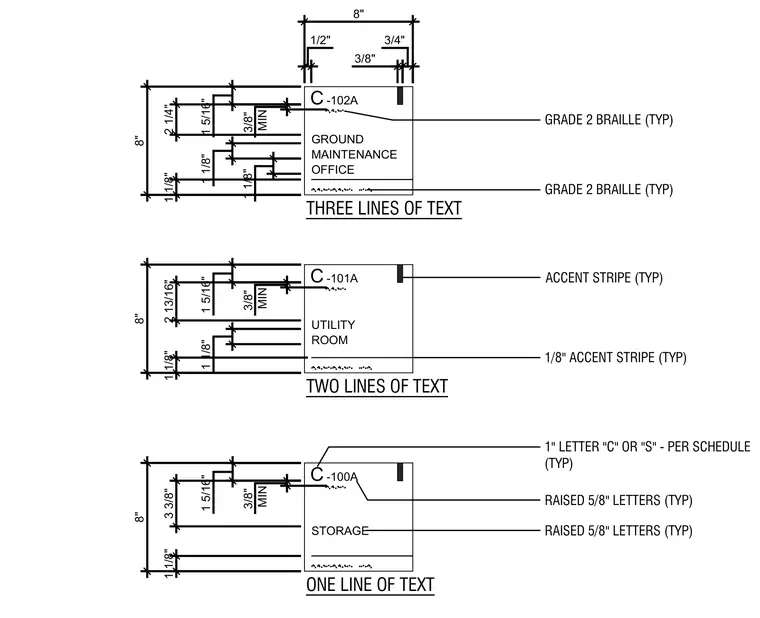

Room identification signage configurations illustrate layout standards for one, two, and three lines of text with a total height of eight inches and a width of eight inches. Each sign incorporates raised five-eighths inch letters, a one-inch letter "C" or "S" per schedule, Grade 2 braille, and a one-eighth inch accent stripe. Precise dimensions govern vertical text spacing, margins, and accent striping placement to meet accessibility guidelines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
