Interior Wall Expansion Joint at Gypsum Partition

Materials

Gypsum / Drywall

Elements

Walls Partitions Expansion / Control Joints Roof / Floor Openings

Connections

Expansion / Slip Connection

About this detail

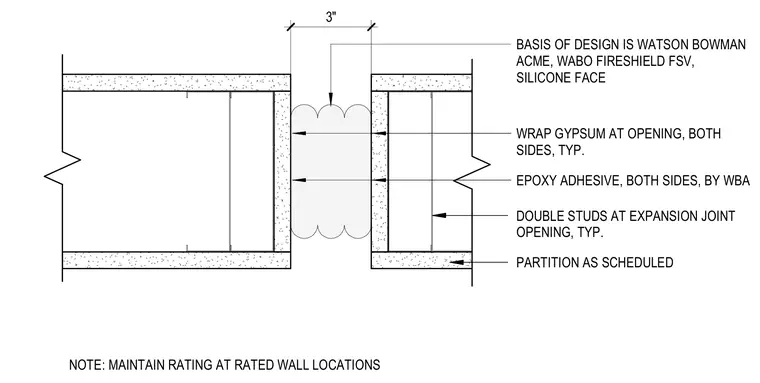

Double steel studs frame both sides of a three-inch expansion joint opening within a gypsum wall partition. Gypsum board wraps the opening on both sides and is secured with epoxy adhesive by Watson Bowman Acme. A Wabo Fireshield FSV with a silicone face provides the joint seal, with the basis of design per Watson Bowman Acme. The fire rating must be maintained at rated wall locations.
