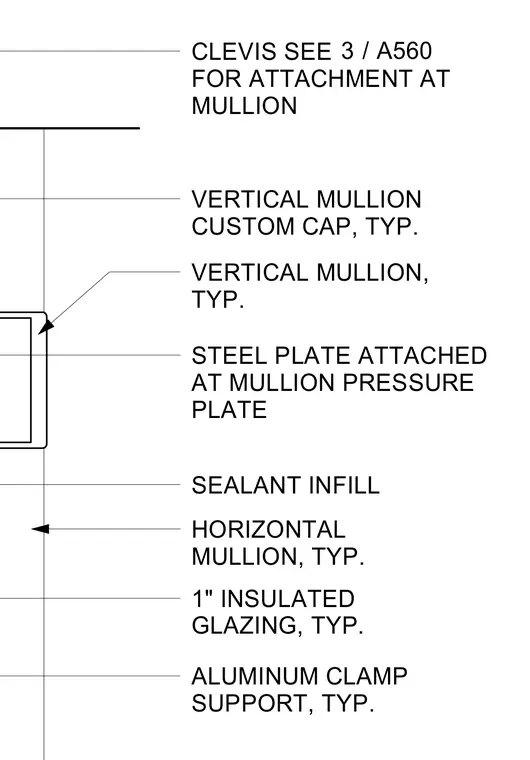

A structural steel plate connects to the curtain wall mullion pressure plate using a clevis fastener detailed on sheet A560. The curtain wall framing incorporates typical vertical and horizontal aluminum mullions fitted with custom caps and typical aluminum clamp supports. Typical 1-inch insulated glazing units are installed within the framing and sealed with typical sealant infill.
VERTICAL MULLION, TYP. ALUMINUM CLAMP SUPPORT, TYP. 1" INSULATED GLAZING, TYP. SEALANT INFILL HORIZONTAL MULLION, TYP. VERTICAL MULLION CUSTOM CAP, TYP. STEEL PLATE ATTACHED AT MULLION PRESSURE PLATE CLEVIS SEE FOR ATTACHMENT AT MULLION / 3 A560
