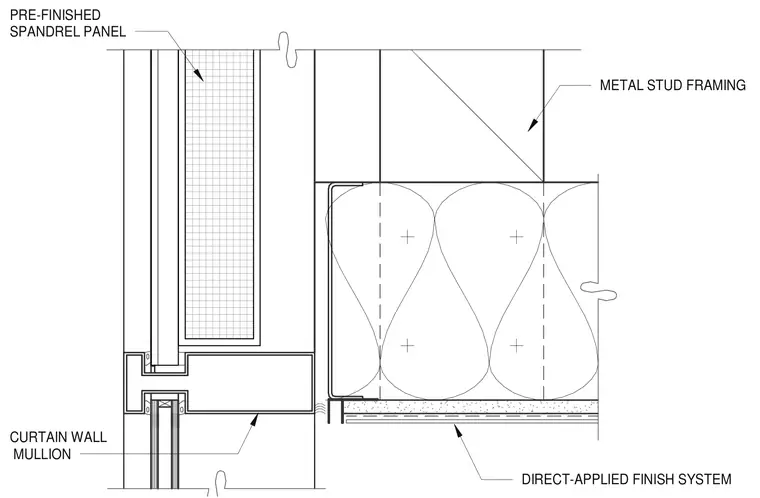

A curtain wall mullion meets a cold-formed metal stud framing soffit with a pre-finished spandrel panel. A direct-applied finish system is applied across the underside of the soffit framing adjacent to the glazing assembly.
DIRECT-APPLIED FINISH SYSTEM CURTAIN WALL MULLION PRE-FINISHED SPANDREL PANEL METAL STUD FRAMING
