Accessible door maneuvering clearances are detailed for hinge approaches on push and pull sides, differentiating requirements for doors with and without closers and latches. Pull side hinge approaches require forty-two to forty-eight inches of clear floor depth and twenty-two to twelve inches of latch clearance alongside twenty-four inches past the strike edge. Push side hinge approaches require forty-eight to fifty-four inches of clear floor depth alongside twenty-four inches past the strike edge. These ADA compliance dimensions ensure adequate wheelchair turning and maneuvering space at swinging doors.

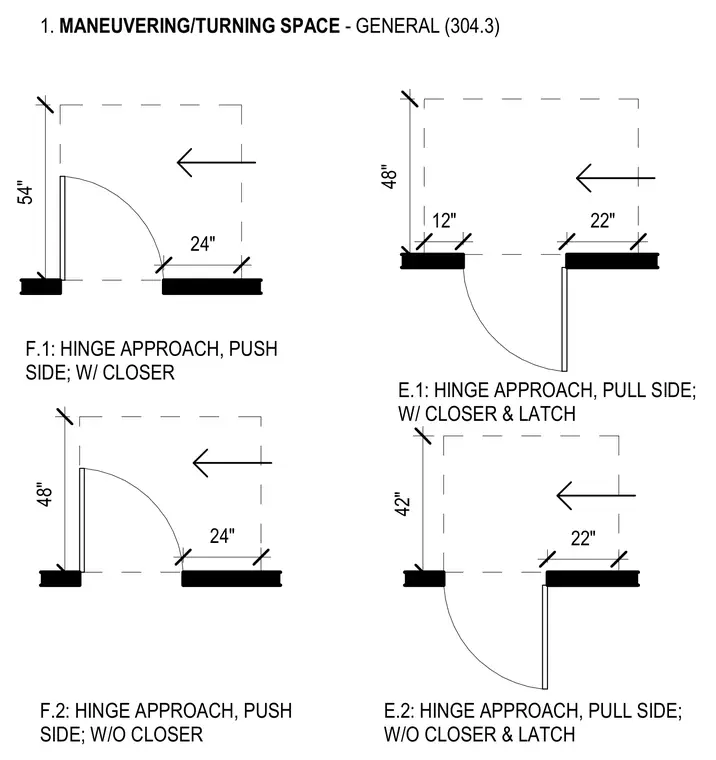

1. MANEUVERING/TURNING SPACE - GENERAL (304.3) 42" 22" 48" 22" 12" 48" 24" 54" 24" E.1: HINGE APPROACH, PULL SIDE; W/ CLOSER & LATCH E.2: HINGE APPROACH, PULL SIDE; W/O CLOSER & LATCH F.1: HINGE APPROACH, PUSH SIDE; W/ CLOSER F.2: HINGE APPROACH, PUSH SIDE; W/O CLOSER
