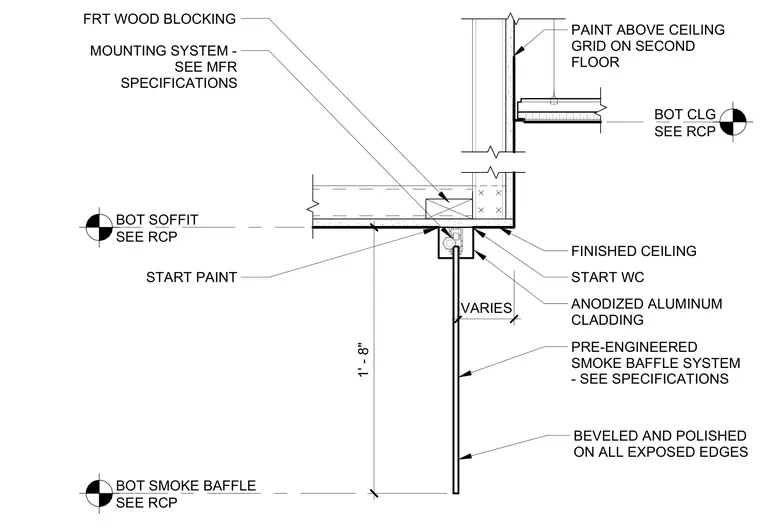

A pre-engineered smoke baffle system mounts to fire-retardant treated wood blocking at the ceiling soffit. Anodized aluminum cladding conceals the mounting system, extending down to frame the smoke baffle with beveled and polished exposed edges. Paint is applied above the ceiling grid on the second floor.
BOT CLG SEE RCP BOT SMOKE BAFFLE SEE RCP BOT SOFFIT SEE RCP PRE-ENGINEERED SMOKE BAFFLE SYSTEM - SEE SPECIFICATIONS FINISHED CEILING MOUNTING SYSTEM - SEE MFR SPECIFICATIONS BEVELED AND POLISHED ON ALL EXPOSED EDGES PAINT ABOVE CEILING GRID ON SECOND FLOOR FRT WOOD BLOCKING ANODIZED ALUMINUM CLADDING VARIES 1' - 8" START PAINT START WC
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
