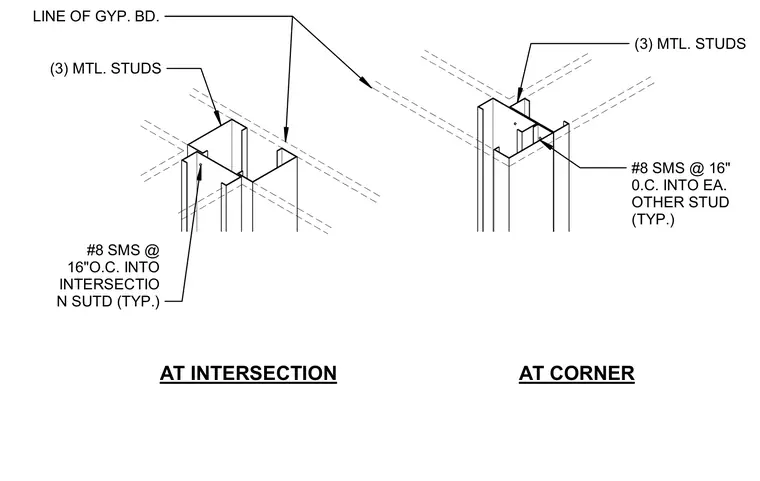

Three metal studs frame partition intersections and corners with continuous gypsum board finishes on both sides. Number 8 sheet metal screws fasten at sixteen inches on center into the intersecting stud at partition junctions. Number 8 sheet metal screws also fasten at sixteen inches on center into each other stud at corner conditions.
#8 SMS @ 16"O.C. INTO INTERSECTIO N SUTD (TYP.) (3) MTL. STUDS LINE OF GYP. BD. (3) MTL. STUDS #8 SMS @ 16" 0.C. INTO EA. OTHER STUD (TYP.) AT INTERSECTION AT CORNER
