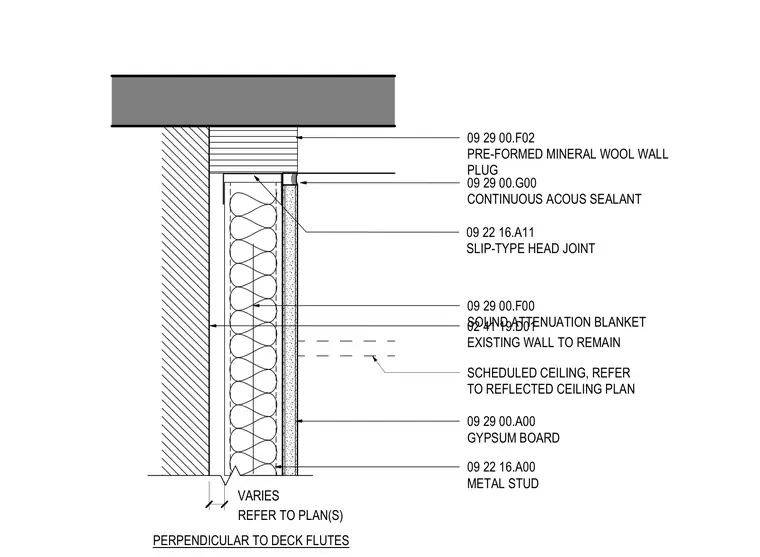

This partition head detail connects a cold-formed metal stud wall with gypsum board to an existing wall to remain and perpendicular deck flutes above. A slip-type head joint accommodates vertical movement at the top of the wall. Pre-formed mineral wool wall plugs fill the gaps at the deck flutes, backed by continuous acoustic sealant. Sound attenuation blankets are installed within the metal stud cavity for acoustic performance.
09 29 00.G00 CONTINUOUS ACOUS SEALANT 09 29 00.F02 PRE-FORMED MINERAL WOOL WALL PLUG 09 22 16.A11 SLIP-TYPE HEAD JOINT 09 29 00.F00 SOUND ATTENUATION BLANKET 02 41 19.D01 EXISTING WALL TO REMAIN 09 22 16.A00 METAL STUD 09 29 00.A00 GYPSUM BOARD VARIES REFER TO PLAN(S) SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN PERPENDICULAR TO DECK FLUTES
