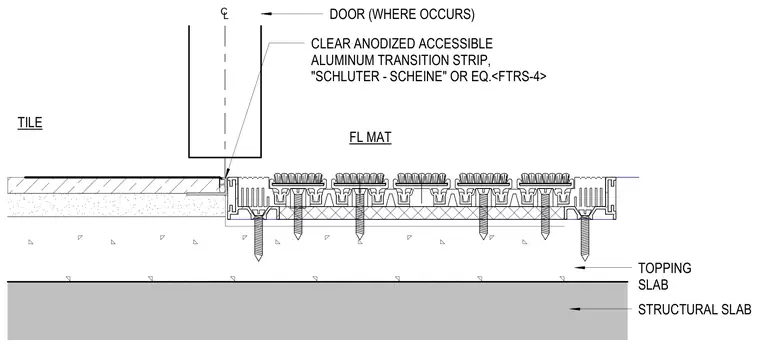

A flooring transition between tile and a recessed floor mat is located at a door threshold. A clear anodized accessible aluminum transition strip, such as Schluter-Schiene or equivalent, is installed at the edge of the tile. The tile sits over a topping slab, which is placed on top of the structural concrete slab. The floor mat system is mounted adjacent to the transition strip and anchored directly into the topping slab.
TILE FL MAT DOOR (WHERE OCCURS) CL TOPPING SLAB STRUCTURAL SLAB CLEAR ANODIZED ACCESSIBLE ALUMINUM TRANSITION STRIP, "SCHLUTER - SCHEINE" OR EQ.<FTRS-4>
