A-3J2GZ — Tunnel Section

Architectural · A-3J2GZ

Tunnel Section

Scale: SCALE: 3/8" = 1'-0"
Units: imperial
Sheet: A543
Discipline: Architectural

Materials

Elements

Floors / Slabs Foundations / Footings Waterproofing / Flashing

Text on the drawing

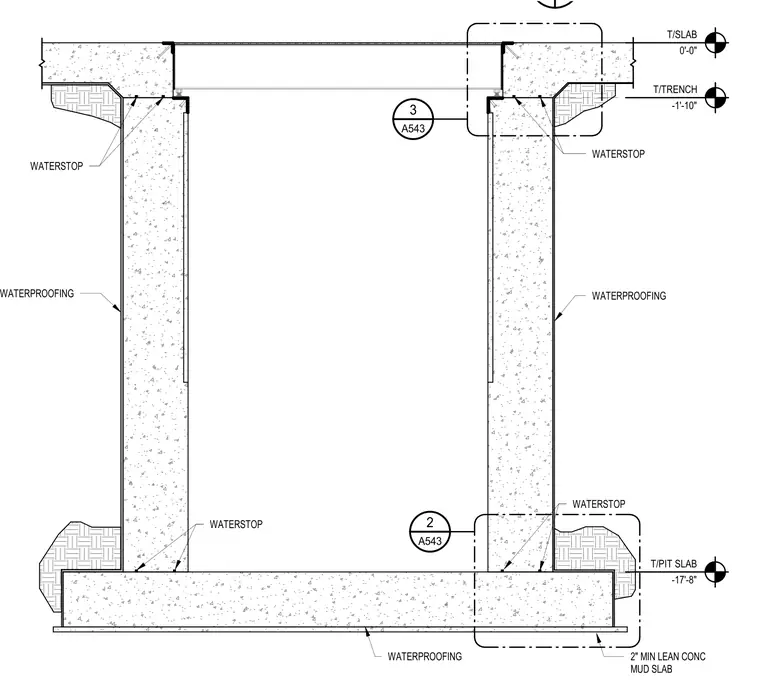

WATERSTOP WATERPROOFING 2" MIN LEAN CONC MUD SLAB WATERSTOP WATERPROOFING WATERSTOP T/SLAB 0'-0" T/TRENCH -1'-10" T/PIT SLAB -17'-8" WATERSTOP WATERPROOFING A543 3 A543 2
