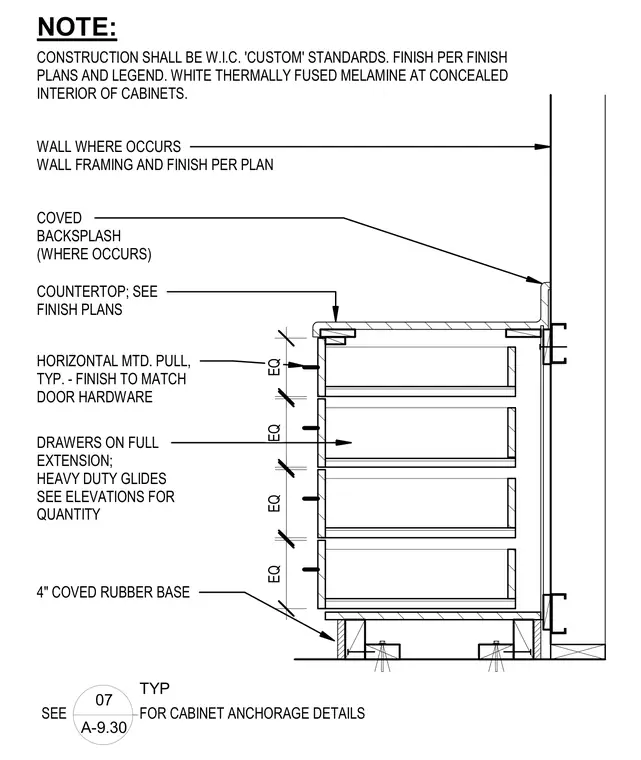

The base cabinet is constructed to Architectural Woodwork Institute custom standards with white thermally fused melamine at concealed interior surfaces. Four drawers feature full-extension, heavy-duty glides and are equipped with horizontal mounted pulls finished to match door hardware. A countertop with an optional coved backsplash sits atop the cabinet, while a four-inch coved rubber base finishes the toe kick area. The unit anchors against a wall framed and finished per plan, with specific anchorage details referenced elsewhere.
COVED BACKSPLASH (WHERE OCCURS) COUNTERTOP; SEE FINISH PLANS DRAWERS ON FULL EXTENSION; HEAVY DUTY GLIDES SEE ELEVATIONS FOR QUANTITY HORIZONTAL MTD. PULL, TYP. - FINISH TO MATCH DOOR HARDWARE 4" COVED RUBBER BASE WALL WHERE OCCURS WALL FRAMING AND FINISH PER PLAN NOTE: CONSTRUCTION SHALL BE W.I.C. 'CUSTOM' STANDARDS. FINISH PER FINISH PLANS AND LEGEND. WHITE THERMALLY FUSED MELAMINE AT CONCEALED INTERIOR OF CABINETS. SEE FOR CABINET ANCHORAGE DETAILS EQ EQ EQ EQ 07 A-9.30 TYP
