Architectural · A-3HW2B

Double Roller Shade and Curtain Wall Ceiling Intersection

Materials

Steel Timber / Wood

Elements

Beams Ceilings Waterproofing / Flashing

Connections

HSS Connection Welded Connection

About this detail

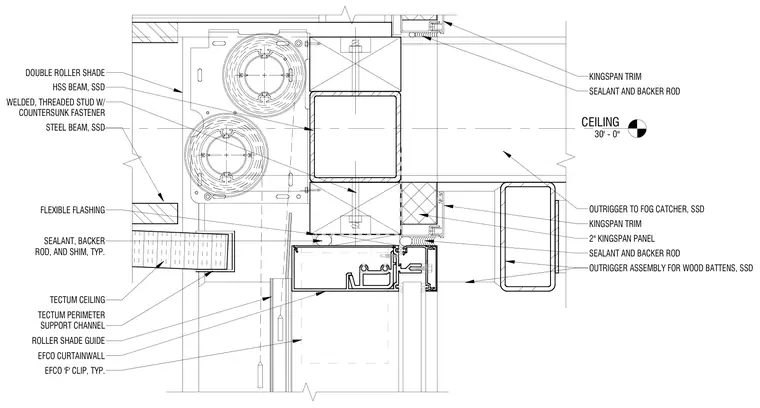

A hollow structural section steel beam supports a double roller shade mechanism via a welded, threaded stud with a countersunk fastener. The perimeter integrates with an EFCO curtain wall utilizing sealant, backer rod, and typical shims alongside a flexible flashing. Tectum ceiling panels tie into a Tectum perimeter support channel and an EFCO 'F' clip. Exterior metal panel assembly features 2-inch Kingspan panels with trim, sealant, backer rod, and outrigger assemblies for wood battens.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
